Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2086*2237*1500mm | Weight: | 4500kg |
|---|---|---|---|
| PCB Size: | Max 500*310mm | PCB Thickness: | 0.1~6mm |
| No.of Camera: | 8 Pcs | Mounting Speed: | 160000CPH |
| Feeder: | 80 Pcs | Head: | 40 Pcs |

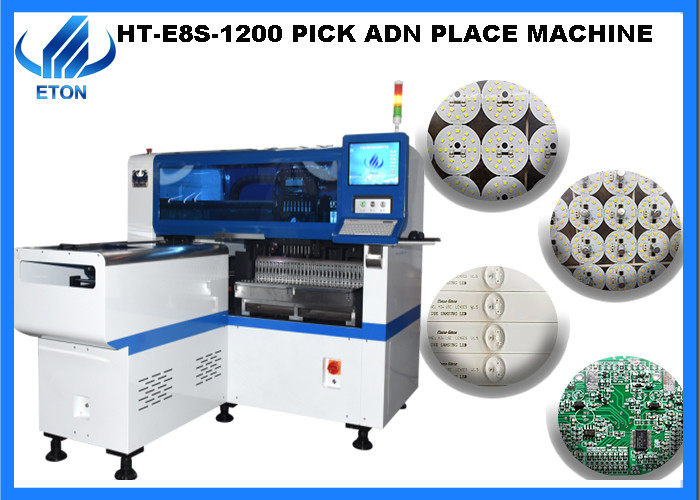

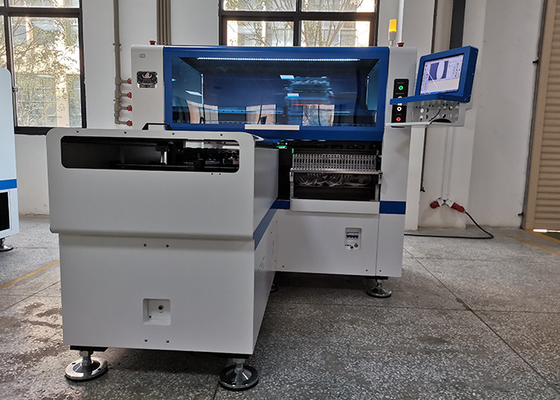

LED bulb 40 heads Electronic feeder feeding system multifunctional pick and place machine
Features
PCB length width: max 1200*500mm
Minimum mount 0402 elements, maximum Mount Range 15mm
Mounting components: LED chip, resistor, capacitor, lens, IC, shaped components,etc
Mounting mode:Group picking and separately placing, separately picking and separately placing
Machine parameter
| PCB length width | Max 1200*500mm min 80*80mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Camera | 2 sets of imported camera |
| Components space | 0.2mm |
| Conveyor transmission | 1200mm |
| Mounting height | ≤7.5mm |
| Feeding way | Electric feeder with double motor |
Application
HT-E8S-1200 suitable for producing kinds of led products, such as led bulb, tube, street light, down light, panel light, ceiling light, BOD bulb etc

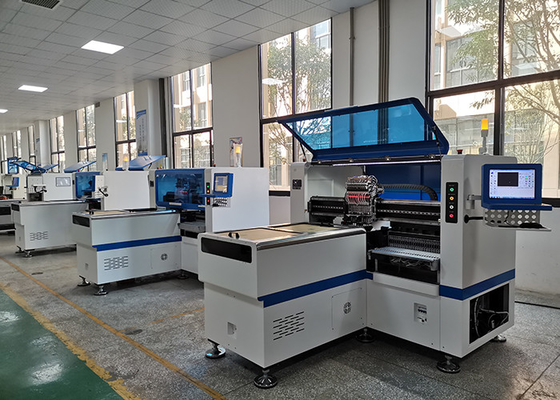

SMT production line- HT-E8S-1200
The semi-automatic production line is mainly composed of semi-automatic printing machine, pick and place machine, reflow oven and conveyor.
Exhibition
Our products are exported to more than 20 countries and regions, such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran,etc.
Package
Our products are packed in vacuum wooden cases.
Every process of packaging is carefully completed by our professional packaging staff to ensure that customers can receive complete products.
Market
Our products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Russia, etc. It is popular in many countries and has gained many big clients. Well regarded.
