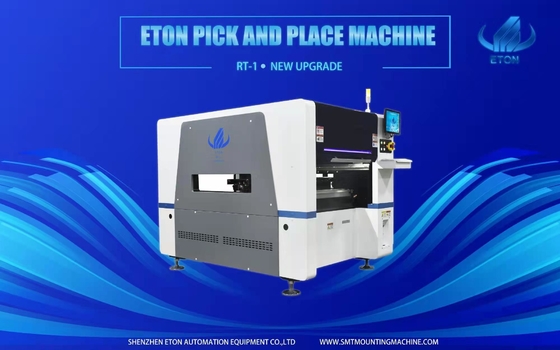

ETON smt assembly equipment small smt pick and place machine in SMT production line

Large Image : ETON smt assembly equipment small smt pick and place machine in SMT production line

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	ccc,ce,risa
Model Number:	YT-101S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	FOB USD 46000/sets
Packaging Details:	Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time:	30 days after deposit
Payment Terms:	L/C, T/T
Supply Ability:	50 sets per mouth

Contact Now

Detailed Product Description

Place Of Origin:	China	Name:	Pick And Place Machine
Warranty:	1 Year	Total Weight:	1700kg
Power:	380AC 50HZ	Drive Way:	High-end Magnetic Linear Motor +servo Motor
Power Consumption:	8KW	Dimension:	215413761762mm
Mounting Speed:	40000CPH	Mounting Height:	<20mm
Visual Camera:	2 Sets Of Imported Camera

ETON smt assembly equipment small smt pick and place machine in SMT production line

Features of SMT machine

Flexible production:Fixed flight vision recognition camera,components with less than 40*40mm or height less than 20mm can be used to high-speed and high-precision,IC tray feeder support.

Intelligent electric feeder:support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.it can achive stable,accurate and high speed feeding.

High reliability :high speed precision head flight vision camera capture the image of placement accordingly,improve the speed the speed and accuracy of placement.

Technical parameter of SMD mounitng machine

Camera	2 sets;head flight vision recognition component;vision alignment+Mark correction
Heads	10 pcs
feeder station	32 pcs
PCB Size	500*350mm
pcb thickness	0.5-4.5mm
Driver way	high-end magnetic linear motor + servo motor
mounting speed	40000CPH
Power	280AC 50 HZ 4kw

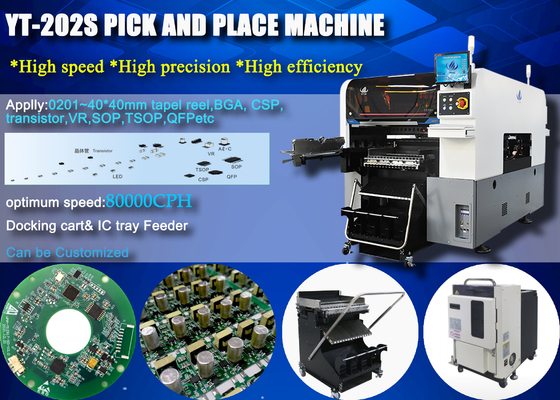

Pictures of pick and place machine

ETON smt assembly equipment small smt pick and place machine in SMT production line 0

SMT PRODUCTION LINE SOLUTION

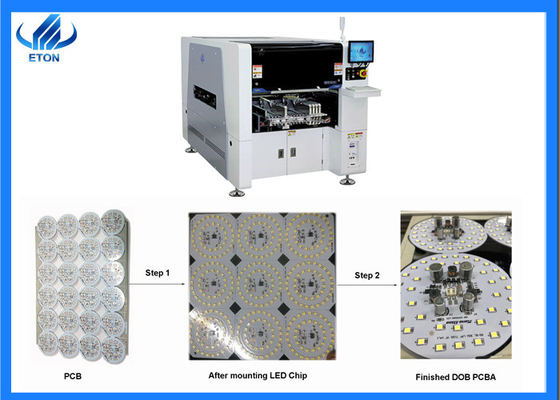

SMT production process
process	Step.	details
Step 1	Solder paste Printing	Operate the stencil printer to print the solder paste onto the PCB
Step 2	Mounting Part	The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting, and the pick and place machine will automatically pick components and place on PCB
Step 3	Reflow Soldering	The PCB board be mounted with components is sent to reflow oven,reflow oven will heat and welding the components with solder paste on PCB.
Step 4	Testing	Check whether the PCBA is misaligned or shift.

ETON smt assembly equipment small smt pick and place machine in SMT production line 1

Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
ETON smt assembly equipment small smt pick and place machine in SMT production line 2

Our company

ETON smt assembly equipment small smt pick and place machine in SMT production line 3

After services of ETON

1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.

FAQ

Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
Q: What is your payment terms?
100% payment before delivery or 50% deposit in advance and the rest before shipment.
Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust
