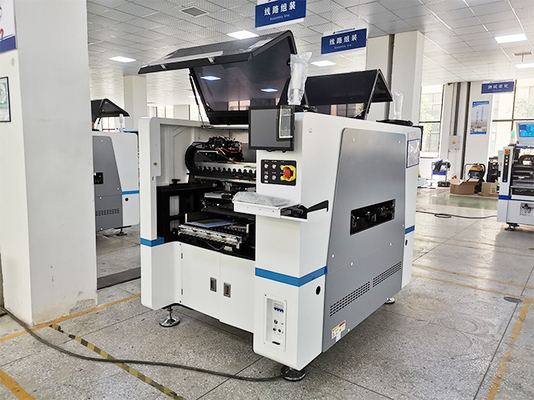

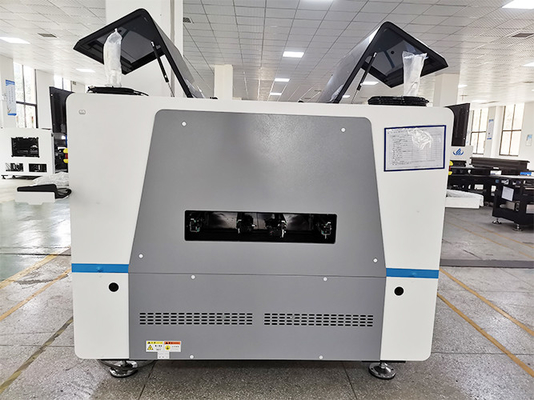

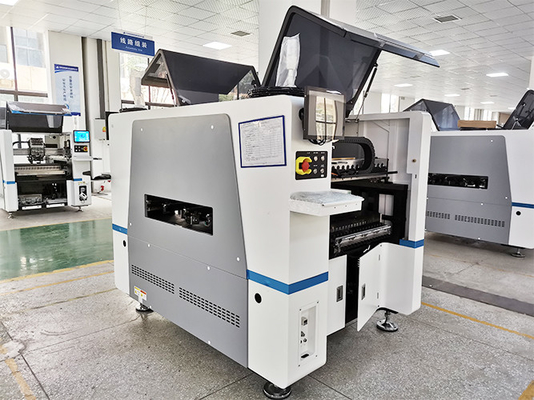

Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder

Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder
Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder

Large Image :  Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: YT202
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Length: 2317mm Width: 1376mm
Height: 1762mm Total Weight: 1700kg
PCB Size: Max:520*450mm Min:50*50mm No.of Camera: 4 Sets
Feeding Waw: Iintelligent Double Head Feeder Mounting Speed: 90000CPH
High Light:

Flex Strips Pick And Place Machine

,

0201 Pick And Place Machine

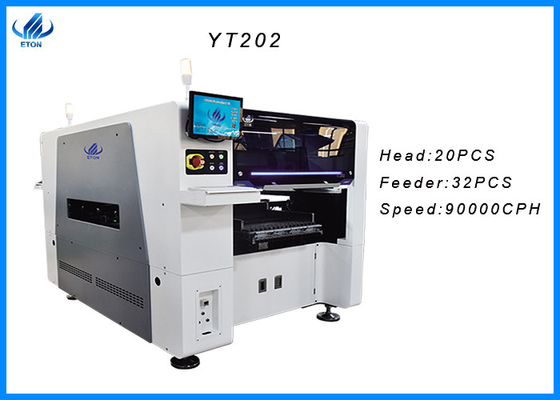

PICK AND PLACE MACHINE 0201-10mm tape reel package and IC tray feeder



YT202:20: it means that there are 20 suction heads in the dual-mode group and 10 suction heads in the single-mode group. A single row of matrix 10 heads is used to form a module with 10 suction heads, and there are 20 suction heads in the dual-mode group.

2: Represents double mode group and double orbit.

Product features

Repetition accuracy: +-0.02mm

Number of feeders: 64 kinds of materials can be loaded

Range of mounting components: 0201-10mm packaging materials and IC materials

Mounting capacity: 90000cph (under the best conditions of the company)

PCB size: single board maximum (450*500mm); Double plate maximum (300*500mm)

Minimum (50*50mm)



YT202:

1. Two sets of x-axis and one set of Y-Axis, using high-end Magnetic Levitation Motor;

2. 20 sets of servo motors for Z-Axis independently control the picking and mounting;

3. Four sets of four degree motors for R-Axis independently control 0-360 degree angle; It is realized by 1 control 5;

4. The three-stage track is divided into plate feeding track, mounting track and publishing track, and the motor is realized by 12 sets of integrated motors;

Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder 0

PARTS INDRUDCTION

lHere is the high-precision magnetic linear motor, which is used to improve the stability, speed and accuracy of machine placement. Our magnetic linear motor uses Israeli technology.

lThis is Grating scale, It is a detection device, which determines the accuracy of the head placement to a certain extent.

This Grating scale is RENISHAW/MicroE brand, from the UK and America.

lThis is Drag Chain, The function is to protect the wires from abrasion and prolong the service life of the machine. It is made in Germany ---- IGUS brand.

lOur YT202 pick and place machine has 4 cameras, one module has 2 cameras, It is a flight recognition camera and the Mark camera. This is the flight recognition camera, and this is the Mark camera. Their role is to improve The accuracy of machine placement. This is also one of the reasons why our multifunction machines can mount precision components.

lLook here, each placement head of this multifunctional machine is controlled by an independent servo motor, which can mount different components.

lThis is the guide rail, our PCB board is transported in from here. It comes from Japan, THK brand.

lThis is our industrial computer, EVOC brand, which is the TOP-2 Brand in the world. It is touch screen monitor, the software is independently developed by ETON, with a Chinese and English operation interface, and the operation is simple and easy to understand.



Our products

We not only provide mounter, but also SMT peripheral equipment, such as: loading machine, Stencil printer machine, Conveyor, Reflow Oven, Translational machine, Cutting machine, Dividing machine, Dispensing machine, Unloading machine, etc

Double head Feeder Pick And Place Machine 0201-10mm Tape Reel Package And IC Tray Feeder 1

FAQ

Q: How is the training?

A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.

Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
