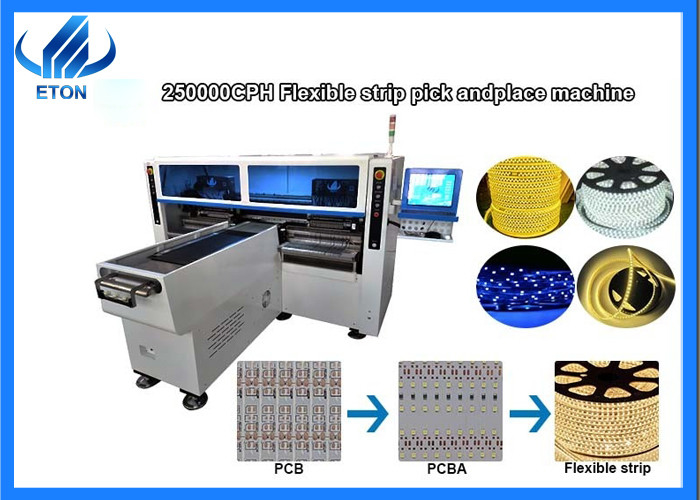

Dual arm Led Flexible Strip Mounter 68 Heads 250000CPH SMT Chip Mounter
Machines Introduction:
HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board,
disposable mount. Apply to LED soft lamp manufacturer.HT-T9 achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.
Machine Features:
1.High Accuracy Magnetic Linear Motor + Panasonic Servo Motor.
2.68 heads(Dual Arm four module , 17 nozzles for each mounting part. Part A or part B can be mounted),which optimum mounting speed reached250000cph.
3. 68 feeder stations
4.Vision alignment, Mark correction.Calibration automatically, high precision, available for RGB.
5.Components:LED3014,3020,3528,5050 and resistor,capacitors,bridge rectifiers etc.
Machine main part:
1. placement heads:After the nozzles is installed, take the material,mounting the components.
2. The feeder station: is used to place the feeder.
3. Software:The software is the brain control of the machine, the operation of the machine can program the placement program.
4. Drag chain:Wrap the wire to ensure the translation of the wire, reduce wear and prolong the service life.
5. Mark camera:Make the PCB board paste program based on the scan code Mark point.
Machine main parameter:
| Model |
HT-T9 |
| Dimension(L*W*H) |
3100*2300*1550mm |
| Weight |
1700kg |
| PCB length width |
250mm*any length |
| PCB thickness |
0.5~1.5mm |
| Mounting mode |
Group to picking and group to mount |
| Mounting height |
≤5mm |
| No.of camera |
5 PCS |
| Vision alignment, Mark correction |
| Components |
LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Components space |
0.5mm |
| Mounting mode |
Group to picking and group to mount |
| Power consumption |
6KW |
| Mounting speed |
200000~250000CPH |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
| X,Y Axis drive way |
High-end magnetic linear motor+Servo motor |
| Feeding way |
Electric feeder with double motor |
SMT Production line:
We have more than 15 years of experience in the field of SMT, we can not only provide you with placement machines, but also provide you with complete line solutions, including printing machines, docking stations, reflow soldering machines, etc.
Packing:
Our Advantages:
1.We are leading manufacturer of automatic high speed pick and place machine.
2.80% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 500000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We
have offices in Mumbai and New Delhi, very quick to support.
FAQ:
1..Do you have overseas engineers?
Yes, of course. We have local engineers in India, If you have any problem about machine, we can send India engineer to solve the problem for you.
2.How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
3.Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
4.What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery.
