Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Multifunctional SMT Machine | Dimension(L*W*H): | 1950*2250*1650mm |
|---|---|---|---|
| PCB Length Width: | Max:600*300mm;Min:100*100mm | Mounting Speed: | 90000 CPH |
| Heads: | 24pcs | No. Of Feeders Station: | 48 PCS(double Module） |
| High Light: | panel light Pick And Place Machine,Pick And Place Machine 90k CPH,24 Heads SMT Mounting Machine |
||

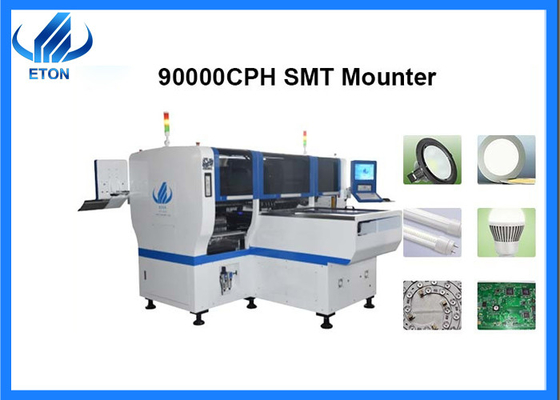

24 Heads Automatic Pick And Place Machine Double Module 90000CPH For panel light
Machine features:
(1) HT-E8D-600:Double module magnetic motor multifunctional pick and place machine.
Dual system, dual module multifunctional mounter to produce two different products at the same time.
(2).24 placements heads, The optimum mounting speed reached 90000 CPH.The actual production capacity should be determined according to the mounted products and the actual production situation.
(3).Mounting components:Led chip,capacitors,resistors,lens,IC,shape components(min size 0402 max height 17mm)etc.Max PCB Size:600*300mm
(4)Adopted Electronic feeder feeding system,non-stop material re-loading function.This machine equipped with 2 sets of imported camera,vision for the flight identification,which greatly improve the placement the placement accuracy of the machine.
Machine parameter:
| Model | HT-E8D-600 |
| Dimension(L*W*H) | 1950*2250*1650mm |
| Weight | 2200kg |
| PCB length width | Max:600*300mm;Min:100*100mm |
| PCB thickness | 0.5~5mm |
| Mounting precision | ±0.04mm |
| Mounting components | Led chip,capacitors,resistors,lens,IC,shape components(min size 0402 max height 17mm)etc. |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| Mounting height | <15mm |
| Mounting speed | 90000 CPH |
| Power consumption | 8KW |
| No. Of feeders station | 48 PCS(double module) |
| No. Of head | 24PCS(double module) |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |
| Feeding way | Electric feeder with double motor |
Application:
HT-E8D-600 machine apply to many products,such as DOB bulb,flexible strip,led tube,lens,street light,led display,power drive,electric board,led display,down light etc.
Related machine:
In the SMT industry, we are professional, we are not only a leading manufacturer of placement machines, but also a manufacturer of some peripheral equipment, we can also provide you with some other SMT machines, such as printer machine,conveyor,dispenser machine, reflow over, etc.
Exhibition:
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
Overseas Exhibition: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Domestic Exhibition: Guangzhou international lighting Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Services:
(1).Free technical support: 7*24 hours online technical service.
(2).Warranty: 1 year. During the warranty period, any parts that need to be repaired and replaced are free.
(3).We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
(4) If necessary, Chinese engineers will come to your factory for free install and training.
(5) Besides India, We also have local engineers in Egypt, Turkey. Can provide you with timely services
(6).Free upgrade software: machine software is developed by our company, so we know how to make it more intelligent and we provide life-long free upgrade software for customer who purchase the machine.
(7).we can provide whole line solution if you want. We are very professional on SMT field.
FAQ:
1.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
2.Is the machines easy to operate?
Yes,of course.Our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
3.What are the terms of payment?
FOB Shenzhen is OK
4.What are the advantages of HT-E8D pick and place machine?
Compared to other multifunctional pick and place machine HT-E8D pick and place machine has a particularly wide rang of applications. Multifunctional module HT-E8D suitable for mounting many kind of led lighting, such as led bulb, panel, DOB, strip light, tube, display, down-light, street light, etc.
