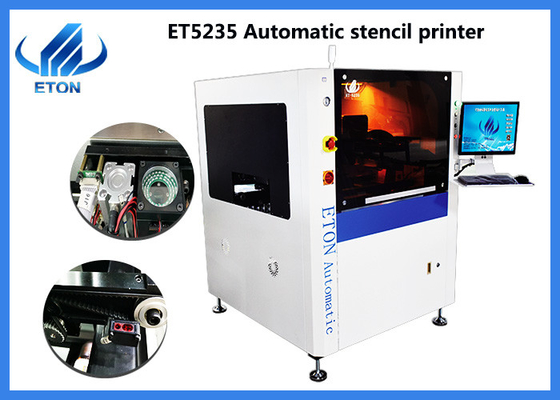

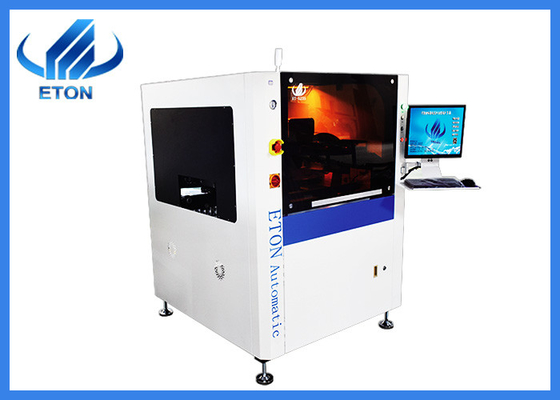

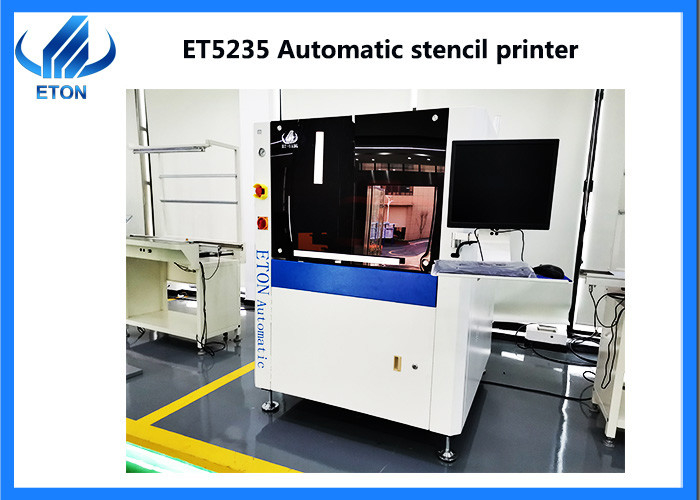

PCB Solder Paste SMT Line Equipment Full Automatic Servo Motor Printer

Full automatic wide applicability PCB solder paste SMT line servo motor printer

Machine main features

•  PCB transport and clamping system
• The PCB loading direction can be selected and combined freely;
• Unique crafted internal gear conveyor belt to prevent jamming;
• Programmable transport speed control makes PCB stop more precise;
• Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.

• Stencil positioning system

• Arch bridge-shaped suspension hanging direct-contact scraper;
• The size of steel mesh is universal, with goof and wide applicability;
• Segmented fixed steel mesh frame.

• Scraper system

• Programmable suspension self-adjusting stepper motor drives print head;
• Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
• Slide rail type scraper system, improve operation stability and prolong time;
• Embedded scale, never fall off.

• Operation system

• Easy to learn and easy to use friendly operation interface;
• With good human-machine dialogue function;
• Make program files with teaching and navigation functions, with prompts for each step;
• One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.

• Image and optical system

• X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side;
• The polarizer is added inside, and the mark different shapes is automatically and accurately grasped, and the upper, lower and coaxial three way uniform light sources.

Machine main parameter

Our advantage

• Focusing on SMT high speed pick and place machine more than 20 years
• The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
• ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Packages

Step 1: Wrap with stretch film to prevent the equipment from.

Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.

Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.

Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.

Service

Pre-sale service

Provide suitable production plan

Advise on plant electrical equipment and layout

Sale service

Report machine status in time

Follow up and send test machine video

After-sales service

Software lifetime upgrade

24 hours to deal with problems online

Engineers can arrive on site to teach operation and debug the machine

Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)

Shipping and Delivery

We usually transport the goods to the port in containers and then ship them to the destination. For the transportation of machines, land transportation and air transportation are also possible.

FAQ

Q. What is your merits of the machine to others production?

A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.

Q. If I need a perfect line of the machine can you supply?

A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.

Q. Can you accept D/P or D/A as the payment term?

A. For our regular payment terms, we usually use T/T.

Q. Whether you have professional engineers for installation of the machine in India?

A. Yes, we have professional engineers in India to provide considerable service to our clients.
