Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | MAX:1200*330 MIN:100*100mm | PCB Thickness: | 0.5-5mm |
| Mounting Mode: | Group Picking And Group Placing | System: | Windows 7 |
| No.of Camera: | 5 Sets | Mounting Speed: | 150000-180000CPH |
| High Light: | group placing LED Tube Mounting Machine,180000CPH LED Tube Mounting Machine,LED Tube Light SMT Mounter Machine |
||

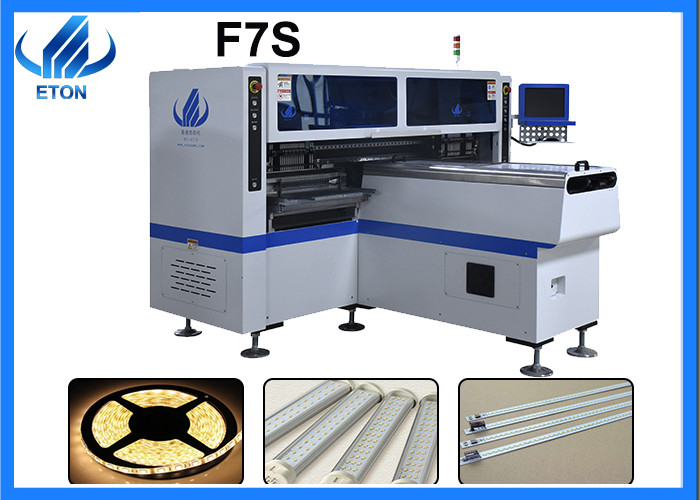

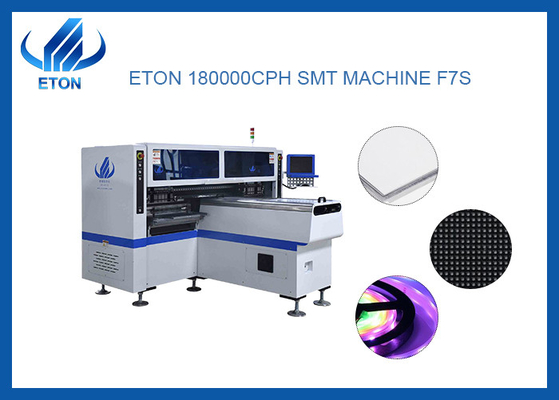

Machine feature
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.
Two mounting modules,17 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: group to take and group to mount.
The speed can reach 15000-18000CPH.
Machine parameter
| F7S | |
| Dimension | 2700*2300*1550mm |
| Total weight | 1700kg |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| No.of camera | 5 sets(vision alignment, mark correction) |
| Mounting speed | 15000-18000CPH |
| Components space | 0.5mm |
| No.of feeder | 68PCS |
| No.of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Company introduction
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Exhibition
Foreign exhibition
India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition
Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Service
Company five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“No worries ” after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: A national well-known brand, build world-class enterprises.
ETON purpose: to create value for customers, creating benefits for society.
ETON vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
FAQ
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
How long the delivery?
30 Days.

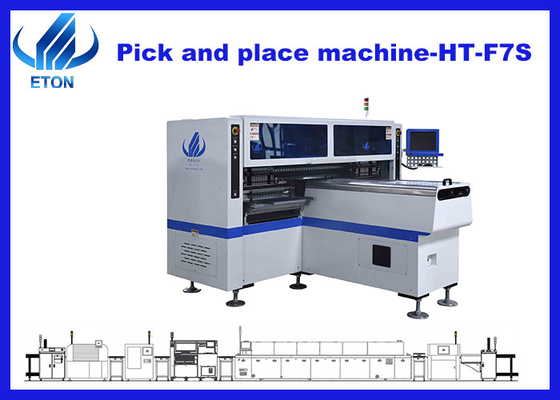

Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
