Dimension: | 3150*2250*1650mm | Total Weight: | 2500kg |
---|---|---|---|
PCB Length Width: | MAX:1200*300 MIN:100*100mm | PCB Thickness: | 0.5-5mm |
Mounting Mode: | Group/separately Picking And Separately Placing | System: | Windows 7 |
No.of Camera: | 5 Sets | Mounting Speed: | 90000CPH |
High Light: | 90K CPH Pick And Place Machine,windows7 Pick And Place Machine,Multifunctional Led Light Assembly Machine |

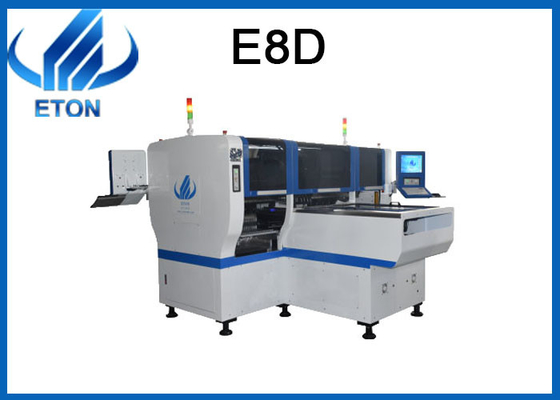

Machine parameter
Item | E8D |
Dimension | 3150*2250*1650mm |
Total weight | 2500kg |
PCB length width |
Max:1200*300mm Min:100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing, Separately picking and separately placing |
Mounting height | <15mm(automatic changing) |
Components space | 0.2mm |
No.of feeders station | 48 PCS double module |
No.of head | 24 PCS double module |
Components | LED chip, capacitors, resistors, IC, shaped components, etc. |
Machine features

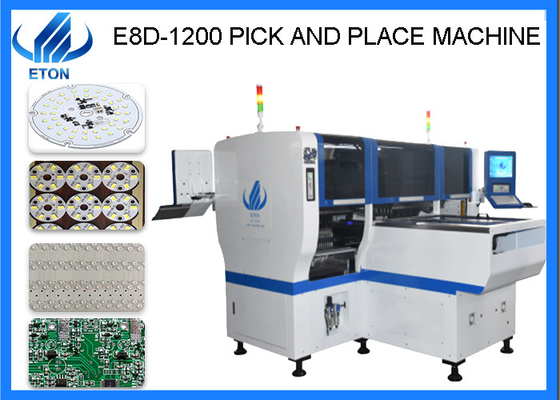

Double module magnetic linear motor multifunctional pick and place machine.
Dual system, dual module multifunctional mounter to produce two different products at the same time.
Mounting components: LED chip, capacitors, resistors, IC, shaped components,etc.
Components : min size 0402 max height 15mm
Application: power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.
Electronic feeder feeding system.
Vision alignment flight identification, mark correction.
Non-stop material re-loading function.
Auto-optimization after coordinates generated, etc.

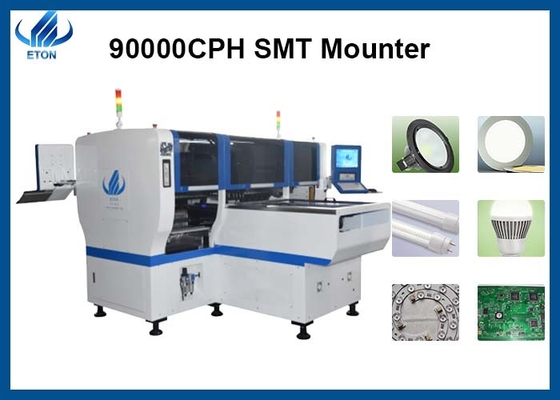

The speed can reach 90000CPH.
Group picking and separately placing, separately picking and separately placing .
Application
Exhibition
Foreign exhibition
India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition
Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Service
Company five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“No worries ” after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: A national well-known brand, build world-class enterprises.
ETON purpose: to create value for customers, creating benefits for society.
ETON vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Package
FAQ
Can I use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the India delivery forwarder will charge ours more than yours. So actually to do EXW will more simple and save cost for you.
Can you support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field.
What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
Is the machine easy to operate?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
