Product Details:
Payment & Shipping Terms:
|
Length: | 2788mm | Width: | 1686mm |
---|---|---|---|
Height: | 1375mm | Total Weight: | 1700kg |
PCB Thickness: | 0.5-4.5mm | System: | Windows7 |
No.of Feeder Station: | 32PCS | No. Of Heads: | 20PCS |
High Light: | 80k CPH SMT Mounting Machine,Mark camera SMT Mounting Machine,Windows7 SMT Mounter Machine |

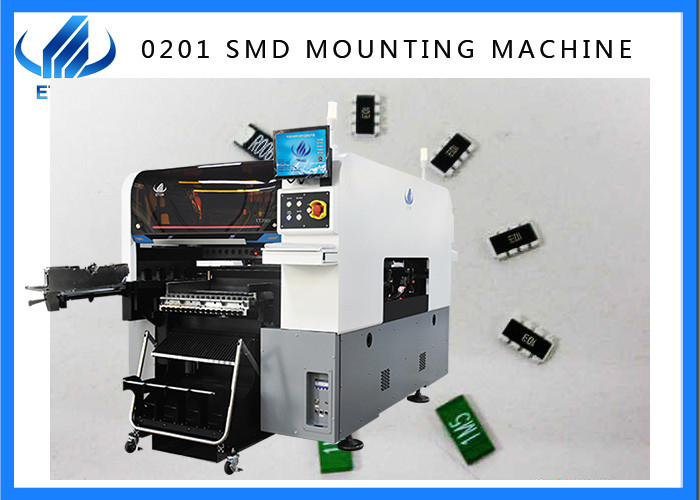

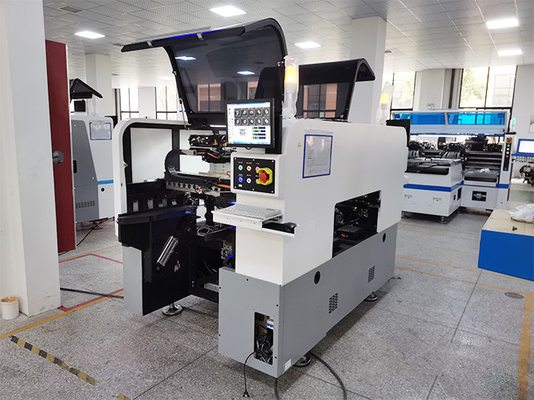

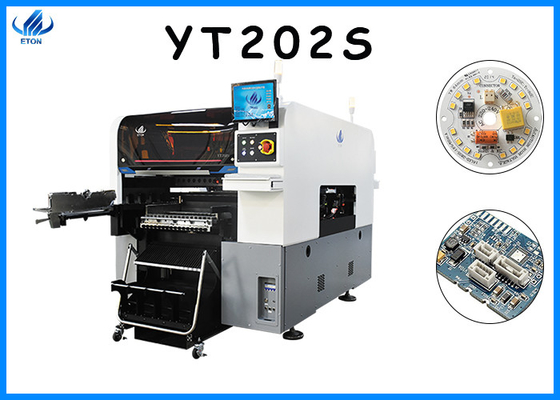

80000CPH SMT Machine Suitable for the whole electronic industry 0201-40*40mm
Characteristic
1. High speed universal integrated mounting head: the high-speed universal integrated mounting head can correspond to the ultra-small chip of 0201 to large components of 40*40mm, with a large corresponding range
2. New fixed flight recognition camera: improve the recognition performance, expand the size of high-speed mounting components to 40*40mm, and recognize ball grid arrays such as BGA or CSP
3. Optical recognition camera: Mark camera: high precision mark camera recognition system, using 3-color illumination recognition
Fixed flight recognition camera: quickly collect multiple head images at one time through the high-speed flight recognition camera, carry out visual calibration of component image position, alignment correction, and adjustable light source height
4. Feeder

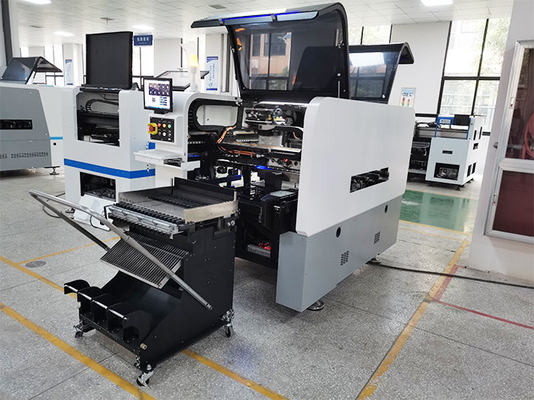

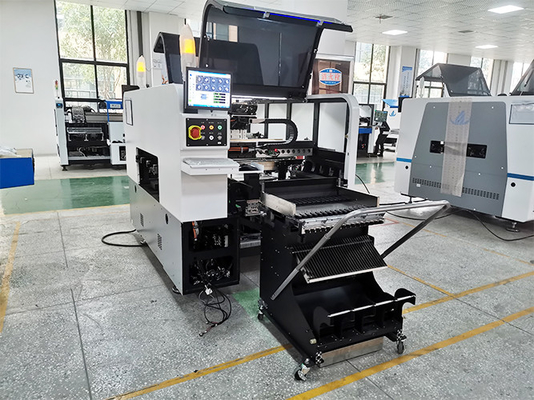

Feeder trolley: the station of the bilateral feeder trolley is 32pcs, which can hold 64 trays of materials. According to the needs of the product, the feeder trolley and IC backpack can be switched freely. The trolley can be changed in one touch mode to minimize the change time
Double head intelligent feeder: it supports YT series universal double head intelligent feeder. When absorbing components, it absorbs components accurately through optics to realize stable, high-speed and accurate feeding
IC backpack: it supports multi-layer pallets (IC backpack), which can be installed alternately with the feeder trolley quickly and easily
5. PCB
Double head double rail: 20 heads, two rails, which can produce two different products at the same time. When one mounting head stops working, the other is not affected
Max size:500*450mm(single PCB)
500*300mm(double PCB)
Min size:50*50mm
Parameter
PCB板尺寸/PCB sized* W) | 最大尺寸Max size:单板500mm*450mm(single PCB) 双板500mm*300mm(double PCB) 最小尺寸Min size: 50mm*50mm |
PCB板厚度/PCB thickness | 0.5-4.5mm |
PCB板固定方法/PCB clamping | 气缸夹板,轨道宽度可调/Cylinder clamping, track width adjustable |
定轨方式/Rail | 双轨双臂(1 轨4轨为固定轨道)/2 Rail,2 gantries(Rail 1,4 are fixed rail) |
系统/System | Windows 7 |
软件/Software | 自主研发/ R&D independently |
生产管理MES系统/Production management MES system | 提供要求定制(选配项)/ Customized(Option) |
离线编程/Off-line programming | W/Available |
相机数量/No. of camera | 4套/4 sets (数字相机 Digital camera ) |
固定飞拍识别元器件/Bottom vision camera recognition | |
视觉对位 +MARK校正/Vision alignment+Mark correction | |
重复精度/Repeat precision | ± 0.02mm |
贴片高度/Mounting height | w20mm |
贴片速度/Mounting speed | 80000CPH (本公司最优条件下)(Optimum speed) |
贴装零件范围/Components range |
0201〜40*40mm封装料及IC背包料 Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |
使用电源及功率/Power | 380AC 50HZ 6KW |
使用环境/Operating environment | 23°C 土 3°C |
传输方向/T「ansmission direction | 标准(单向)/Standard: Single direction |
传送方式/Transmission mode | 在线/Online drive |
定位方式/Position mode | 光学/Optical |
耗气量/Ai「consumption | 0.4-0.6mpa ( 4-6kgf/cm2) 150N/min |
电气控制/Electrical control | ETON 自主研发/Independent research and development by ETON |
运动控制卡模块 1 套/Motion control card module 1 set | ETON 自主研发/Independent research and development by ETON |
XYZ轴驱动方式/X,Y,Z Axis drive way | 高端磁悬浮电机+伺服电机/High-end magnetic linear motor +Servo motor |
可放置送料器数>/No. of Feeder station | 双边送料器台车站位32PCS,可装物料64盘(单边送料器台车站位16PCS, 可装物料32盘),根据产品需要送料器台车与IC背包可自由切换(背包选配) / Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feederdC tray feeder:Option) |
吸嘴安装数m/No. of Heads | 双边20PCS(单边 10PCS)/Double side:20pcs(single side:10pcs) |
送料方式/Feeding way | 双头智能送料器/Intelligent Double head Feeder |
What is SMT
SMT is a surface mount technology, which is the most popular technology and process in the electronic assembly industry at present. SMT chip refers to the abbreviation of a series of technological processes processed on the basis of PCB.
Other machines
We not only provide chip mounters, but also loading machines, docking stations, printing machines, reflow soldering, transfer machines, AOI, SPI, X-ray, unloading machines, etc.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
