Product Details:
Payment & Shipping Terms:
|
| Length: | 2788mm | Width: | 1686mm |
|---|---|---|---|
| Height: | 1375mm | Total Weight: | 1700kg |
| PCB Thickness: | 0.5-4.5mm | No.of Camera: | 4PCS |
| No.of Feeder Station: | 32PCS | No.of Heads: | 40PCS |
| High Light: | 120000 CPH Pick and Place machine,IC Tray Feeder SMT Placement machine,4PCS camera SMT Placement machine |
||

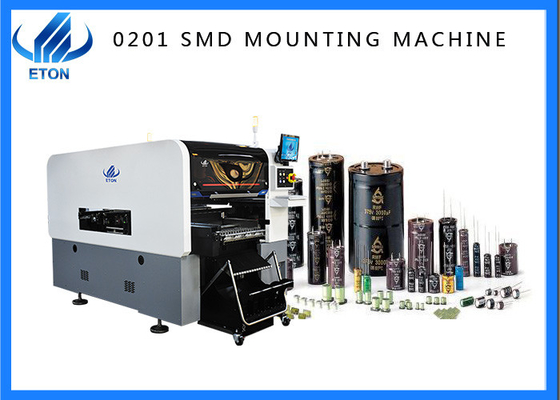

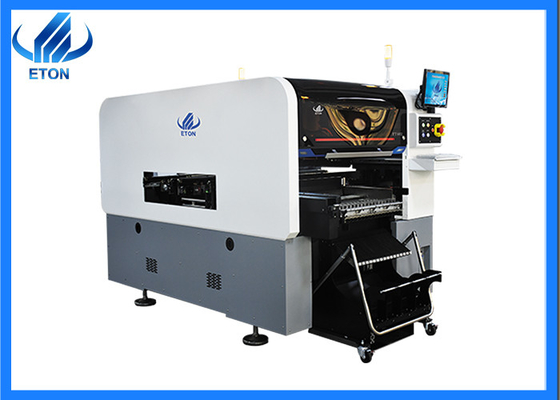

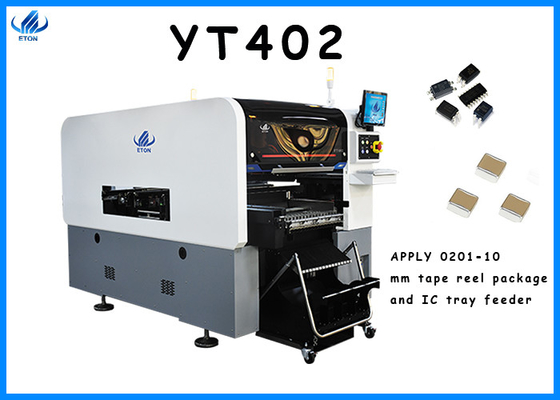

120000CPH Pick and Place machine apply 0201-10mm tape rell package and IC tray feeder
Characteristic
1. High speed universal integrated mounting head, 40 heads, each head is controlled by an independent motor, using a double row matrix type, the first 10 heads form a module, 20 suction heads, and the double mode group has 40 suction heads
2. New fixed aerial camera: improve the recognition performance, and expand the size of the corresponding components installed at high speed to 10*10mm
Mark camera: a high-precision mark camera recognition system, which adopts the three-color illumination recognition method, is suitable for any shape mark and lens (blue light scanning), and has a wide range of applications
Fixed line scan camera: through high-speed flight recognition camera, it can quickly collect multiple head images at one time, carry out visual calibration of component image position, alignment correction, and the height of light source can be adjusted
3.PCB
Max size:500*450mm(single PCB)
500*300mm(double PCB)
Min size:50*50mm
Parameter
| 线路板/PCB | |
| PCB板尺寸/PCB size(L* W) | 最大尺寸Max size:单板500mm*450mm(single PCB) 双板500mm*300mm(double PCB) 最小尺寸Min size: 50mm*50mm |
| PCB板厚度/PCB thickness | 0.5-4.5mm |
| PCB板固定方法/PCB clamping | 气缶I夹板,轨道宽度可调/Cylinder clamping, track width adjustable |
| 定轨方式/Rail | 双轨双臂(1 轨4轨为固定轨道)/2 Rail,2 gantries(Rail 1,4 are fixed rail) |
| 系统/Sy stem | Windows 7 |
| 软件/Software | 自主研发/ R&D independently |
| 生产管理MES系统/Production management MES system | 提供要求定制(选配项)/ Customized(Option) |
| 离线编程/Off-line programming | 有/Available |
| 相机数M/No. of camera | 4套/4 sets (数字相机 Digital camera ) |
| 固定飞拍识别元器件/Bottom vision camera recognition | |
| 视觉对位+MARK校正/Vision alignment+Mark correction | |
| 重复精度/Repeat precision | + 0.02mm |
| 贴片高度/Mounting height | W6mm |
| 贴片速度/Mounting speed | 120000CPH (本公司最优条件下)(Optimum speed) |
| 贴装零件范围/Components range | 0201~10mm 封装料及 IC 料/Min 0201 packagesand IC etc. |
| 使用电源及功率/Power | 380AC 50HZ 6KW |
| 使用环境/Operating environment | 23°C±3°C |
| 传输方向/Transmission direction | 标准(单向)/Standard: Single direction |
| 传送方式/Transmission mode | 在线/Online drive |
| 定位方式/Position mode | 光学/Optical |
| 耗气量/Air consumption | 0.4-0.6mpa ( 4-6kgf/cm2) 1 50N/min |
| 电气控制/Electrical control | ETON 自主研^/Independent research and development by ETON |
| 运动控制卡模块 1 套/Motion control card module 1 set | ETON 自主研发/Independent research and development by ETON |
| XYZ轴驱动方式/X,Y,Z Axis drive way | 高端磁悬浮电机+伺服电机/High-end magnetic linear motor +Servo motor |
| 可放置送料器数S/No. of Feeder station |
双边送料器台车站位32PCS,可装物料64盘(单边送料器台车站位16PCS, 可装物料32盘) Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS) |
| 吸嘴安装数＞/No. of Heads | 双边40PCS(单边20PCS)/Double side:40pcs(single side:20pcs) |
| 送料方式/Feeding way | 双头智能送料器/Intelligent Double head Feeder |
Our services
Once you buy our machine, you can enjoy the free door-to-door installation service of engineers. During the warranty period, all parts are damaged and replaced free of charge. You can support online video free teaching 24 hours a day, and provide free software update services for life.
FAQ
Q:What's about the guarantee of the machines?
A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
Q:Did you develop your own machine?
A:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
Q:What is your machine suitable for?
A:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries
