Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 2550mm | Width: | 1650mm |
| Height: | 1550mm | Total Weight: | 1700kg |
| High Light: | one module SMT pick and place machine,LED Light making machine 45000 CPH,electrical feeder LED Light making machine |
||

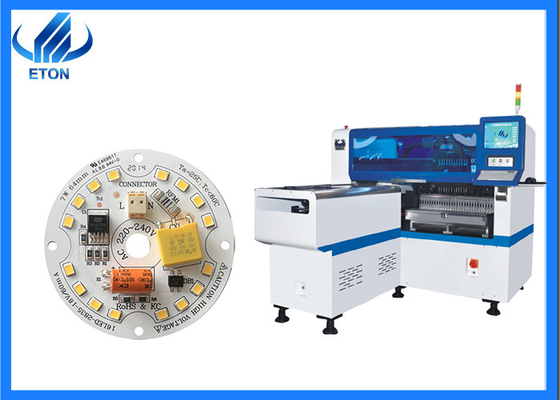

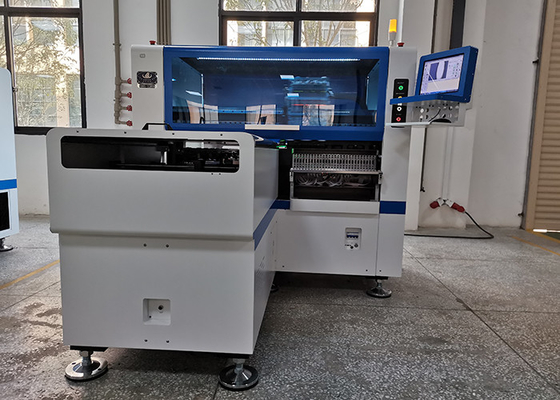

All LED Light SMT pick and place machine with 45000 CPH electrical feeder double motor
Product description
E8S-1200, one module, one head, one system, 12 nozzles, 28 feeders, the ideal speed can reach 45000CPH, it has an absolute advantage in the production capacity of the same level products, and the production capacity is very high.
Secondly, the quality is very good. The arched base and the head that moves left and right make this E8S-1200 a very wide range of application components. The minimum size component is 0402, and the maximum size component is 15mm. The components in between can be pasted. , like LED chip3014/3528/2835/5050, resistors, bridge stacks, capacitors, ICs, special-shaped components and so on. And the base is independently researched and developed by our company, with strong support ability, high stability and reliability.
Feature
| The non-stop refueling function saves refueling time and improves production efficiency. |
| It is suitable for all kinds of different materials, such as tape materials, bulk materials, tubular materials, etc., with powerful functions |
| Group pick and paste or separate pick and paste, any angle of the PCB board can be scanned and mounted, with high reliability |
| Suitable for all LED lights, including lenses, PCB drivers or outdoor displays, finished products are widely used. |
Parameter
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| No. of Camera | 2 sets of imported camera |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components Space | 0.2mm |
Market share
in China. More than 80% of LED lamp manufacturers are our customers. At the same time, our company is preparing to go public and is a large company with long-term and stable development
In addition, our products are also exported to more than 20 countries and regions overseas, such as India, Vietnam, Pakistan, Egypt, Turkey, Iran, etc., with engineers and offices in some countries, as the market becomes larger and larger, we will will build our offices around the world.
About us
ETON is a leader in China's SMT machine manufacturing, with more than 20 years of SMT machine R&D experience and industry experience, with an industrial park of more than 50,000 square meters, more than 500 employees, a strong R&D team, and more than 100 exclusive products Patented technology, mature department management system, guarantee quality and service, make customers feel at ease.
Package
We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.
FAQ
Q1:How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
