Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-F7S |
|---|---|---|---|
| Dimension: | 2700*2300*1550mm | Weight: | 1700kg |
| Feeder Station: | 68PCS | Heads: | 34PCS |
| Feeding Way: | Electric Feeder With Double Motor | PCB Thickness: | 0.5-5mm |
| No. Of Camera: | 5 Sets Of Import Camera | ||
| High Light: | Tube Light high speed SMT Mounter,LED Tube high speed SMT Mounter,Tube Lights SMT pick and place machine |
||

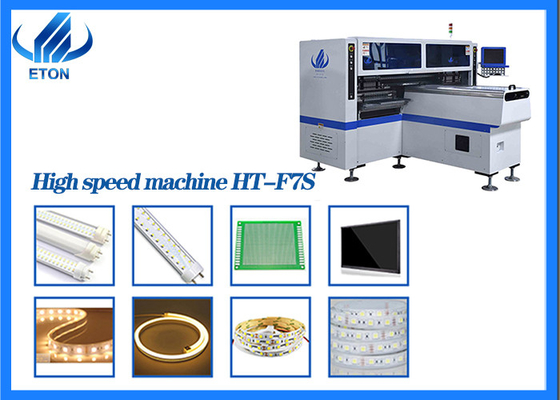

LED tube light 18000CPH high capacity SMT pick and place machine
The technical parameter
| HIGH SPEED AND PROFESSIONAL SMT PICK AND PLACE MACHINE | |
| Total weight: | 1700kg |
| Dimension | 2700*2300*1550mm |
| PCB length width | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |

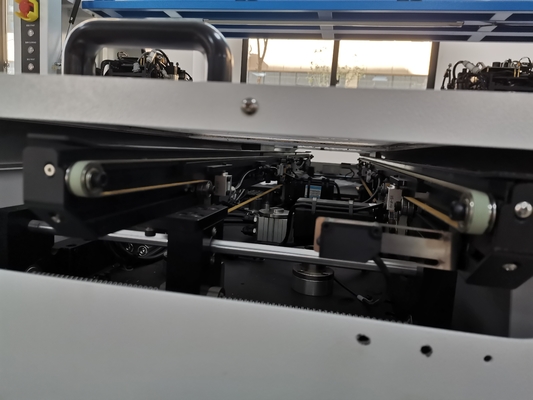

| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| No. Of camera | 5 sets of digital camera |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Power consumption | 6kw |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| No. Of feeders station | 68 PCS |
| No. Of head | 34PCS |
| Feeding way | Electric feeder with double motor |
1.Produce two to four different types of materials at the same time.

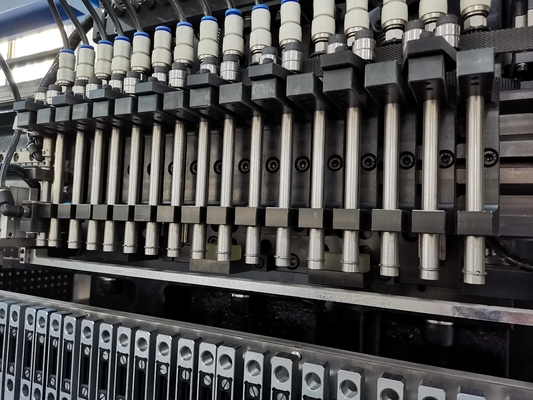

2.34 PCS of heads and 68 PCS of feeders station. Each mounting head has 17 nozzles, the 17 nozzles will pick from feeders station and place on the PCB board at the same time. Every mounting head can be mounted separately or synchronously.
3.the function of calibration automatically and high precision. It is also available for RGB.
4.the mounting speed will reach 180000 chips per hour.
5.Mounting mode:group to pick and group to mount
Applications and components
HT-F7S is mainly available for 0.6 M, 0.9 M, 1.2M rigid PCB and 0.5M ,1 M LED flexible strip and apply to board with any proportion of LED chip and resistor. In addition, HT- F7S is also available for LED display, LED tube and other Linear products.
Components:LED chip 3014/3020/3528/5050/5730/5630, capacitor,resistors,bridge rectifiers etc.
The SMT production line
Our company is very professional in the field of SMT industry , and we provide SMT related equipment and complete production line solution. For example HT-F7S, we will provide a semi automatic production line because of cost , practicability and other factor. The semi-automatic production line include semi automatic stencil printer, conveyor, reflow oven.
Company introduction
ETON is a famous company in China in the field of SMT high speed placement machine. ETON was founded in 2011 with more than 10 years mature experience. The products has been exported to more than 20 countries and regions, such as India, Brazil, Turkey, Russia, South Korea, Tunisia and so on. Nowadays, ETON has obtained a number of intellectual property technologies.
Customer
Our products are exported to more than 30countries & regions Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
Exhibitions
Package and delivery
