Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | 100% Original |
---|---|---|---|
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Mounting Speed: | 90000 CPH |
Pcb Thickness: | 0.5-4.5 Mm | PCB Size: | Max Size: 500*450 Mm(Single Side) 500*300(Double Side) Min Size: 50*50 Mm |
No.of Heads: | Double Side:20 PCS Single Side:10 PCS | Component Range: | Min 0201~10 Mm Packages And IC Etc. |
High Light: | SMT pick and place machine Dual Module,20 Head SMD pick and place machine,SMD pick and place machine Dual Module |

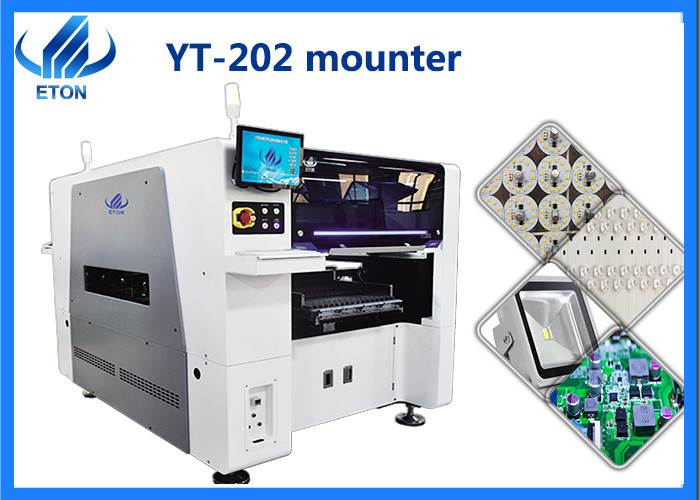

Dual module high precision SMD 20 heads SMT pick and place machine
Machine main features
Machine main parameter
Model | YT-202 |
PCB size |
Max size: 500*450 mm(Single side) 500*300(Double side) Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦20 mm |
Optimal speed | 90000 CPH |
Component range | Min 0201~10 mm packages and IC etc. |
Position mode | Optical |
No.of heads |
Double side:20 PCS Single side:10 PCS |
Machine application
SMT Line solution
The blowing is the function of each machine:
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
