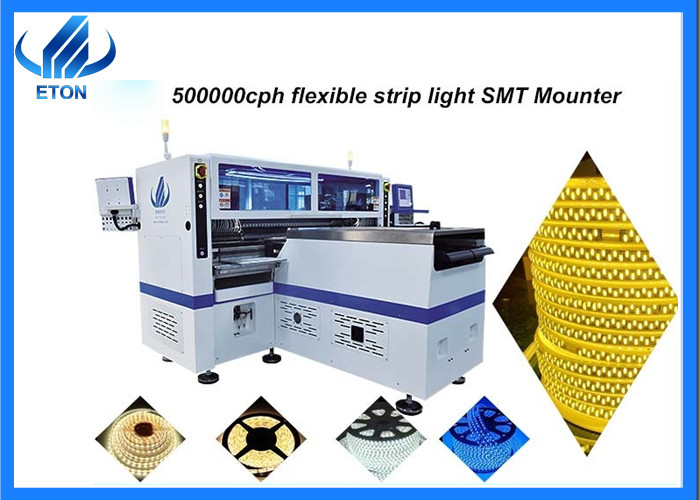

Double rail LED flexible Mounter 136 Heads 500000CPH SMT Chip Mounter
Machine Introduction:
T9-2S Machine belongs to the Value series from ETON, High speed integrated mounting head, suitable for the production of 5m, 10m, 50m, infinitely long roll to roll soft lamp tape, and supports band loading led3014 / 3020 / 2835 / 5050 or resistance, capacitance, bridge pile, etc,The optimal production capacity can reach 500000 CPH.
Machine main features:
1.Adjustable mounting head
2.Unique material leakage detection; Separate replenishment function
3.Ultra high speed mounting capacity
4.The width of the conveying platform can be freely adjusted according to different infinitely long soft light belt plates
5.Flexibly adjust the distance of the feeder mounting base to achieve group picking and group pasting, and realize the function of one pasting and two reclaiming
6.The maximum adjustable range of the feeder is twice that of the feeder, and can produce four kinds of materials at the same time
7.Intelligent feeder, which supports the electric intelligent feeder of high-speed special machine series
8.Flight identification function, without pause, detects whether there are components and the adsorption state of components to prevent installation errors
9.Automatic production of identification data, automatic correction function and replenishment function
10.Drive the clamping rod through the air cylinder to correct all the materials taken by the group
Machine main parameter:
| Model |
T9-2S |
| Dimension(L*W*H) |
3454*3035*1777mm |
| Weight |
3100kg |
| PCB length width |
250mm(±10)*any length |
| PCB thickness |
0.5~0.5mm |
| Mounting way |
Group to picking and group to mount |
| Mounting mode |
Double rail+four group of placement heads |
| Mounting height |
≤5mm |
| No.of camera |
10PCS |
| Vision alignment, Mark correction |
| Components |
LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Power consumption |
9.6KW |
| Optimum Mounting speed |
500000CPH |
| No. Of feeders station |
Double side:136 PCS(single side:68pcs) |
| No. Of head |
Double side:136 PCS(single side:68pcs) |
| X,Y Axis drive way |
High-end magnetic linear motor+Servo motor |
| Feeding way |
Intelligent electric feeder with double motor |
