| Machine Type: | Multifunctional SMT Machine | Dimension(L*W*H): | 1200*1930*1500mm |
|---|---|---|---|
| PCB Length Width: | Max:450*350mm;Min:80*80mm | Optimum Mounting Speed: | 40000CPH |
| No. Of Mounting Head: | 10 Heads | ||
| High Light: | 40000CPH LED Lights Assembly Machine,10 Heads Led Lights Assembly Machine,LED Lights hihg speed SMT Mounter |
||

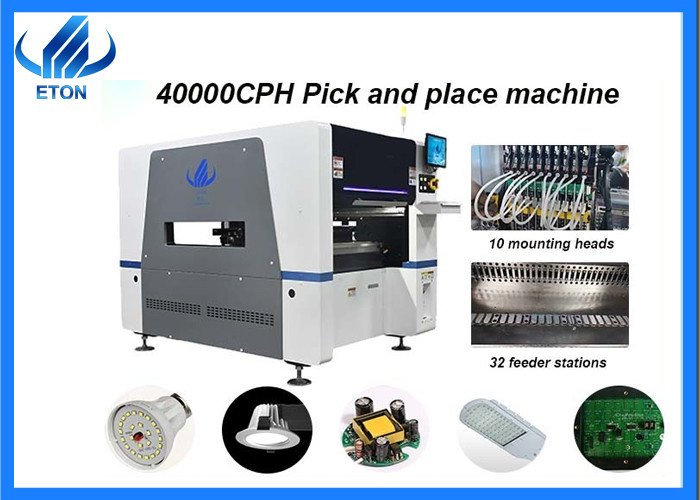

High efficiency led lights assembly line Full-automatic 10 head SMT Mounter
Product description:
RT-1 machine is the most popular machine in our company, it has high cost performance
With 10 heads and 32 feeder, it can transport a variety of materials, and the ideal production capacity can reach 40000 CPH.
Product features:
1. The PCB size of this model is 450*350mm. Because it is a multi-function machine, it is suitable for all LED light PCB boards that meet this size range.
2. Components:LED chip,capacitors,resistors,shaped components etc.
3. It is suitable for mounting various components. There are many kinds of finished lamps. It is a machine with high cost performance.
Machine main parameter:
| Model | RT-1 |
| Dimension(L*W*H) | 1200*1930*1500mm |
| PCB length width | Max:450*350mm;Min:80*80mm |
| PCB thickness | 0.1~6mm |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| No. Of camera | 2 Sets of imported camera.vision for the flight identification,mark correction |
| Mounting height | ≤15mm |
| Mounting speed | 40000cph |
| Power consumption | 4KW |
| No. Of feeders station | 32 PCS single module |
| No. Of head | 10 PCS Single module |
| Mounting precision | ±0.04mm |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| Feeding way | Electric feeder with double motor |
SMT Production line:
If you want to know the production line of this machine, we can design the most reasonable and economical production line for you. Undoubtedly, a complete production line is very important, mainly including the following core equipment:
1. Solder paste printer Machine(Solder paste printing): The solder paste or patch glue is leaked onto the pads of the PCB board to prepare for the next step of soldering the components.
2. Conveyor : transmission the PCB board to pick and place machine, at the same time, It is used for connection between SMT production lines and can also be used for buffering of flexible strip PCB boards.
3. Pick and place machine RT-1: Accurately mount surface mount components to fixed positions on the PCB board.
4. Conveyor: transmission the PCB board to reflow oven.At the same time, It is used for connection between SMT production lines and can also be used for buffering of PCB boards.
5. Reflow oven:Melt the solder paste or die glue to firmly bond the components to the driver board.
Company profile:
(1)ETON Company: a leading manufacturer of automatic high speed pink and place machine. The largest high teach Led light making machine manufacturer in China.ETON has rich industry experience and high-tech talents, as well as a perfect after-sales service team.
(2)ETON Industrial park: There is 5,0000 square meters modern intelligent industrial parks. Having more than 300 employees .Equipped with an advanced processing and manufacturing centers.There are various machine,the fastest capacity reached 500000CPH,which has broken world record.
Our client:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
FAQ:
1.Do you have overseas after-sales services?
Yes.We can provide technical support abroad with you. We have offices overseas and have local engineers to help you solve the problems with the pick and place machine offline.
2.How about the warranty?
We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
3.Is it hard to use these machines?
No,not at all. 5 days is enough to learn to operate the machines.
4.What can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
