Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Pick And Place Machine | Model: | HT-F7S |
|---|---|---|---|
| No. Of Heads: | 34pcs | Optimal Speed: | 180000cph |
| Max Pcb Size: | 1200*330mm | Min Pcb Size: | 100*100mm |
| No. Of Camera: | 5pcs | No. Of Feeder Station: | 68 Pcs |
| High Light: | pick and place machine LED Lamp,5pcs camera High speed SMT Mounter,SMD Lamp High speed SMT Mounter |
||

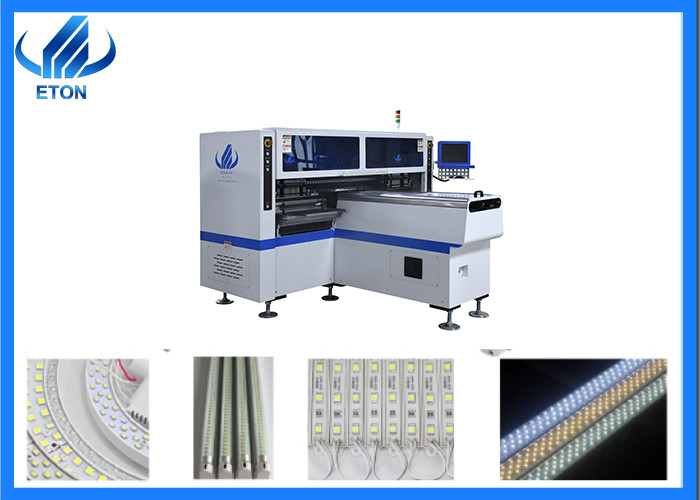

Made in China LED SMD lamp pick and place machine
Introduction
HT-F7S is 180000cph high speed pick and place machine for led tube, strip light and panel light making, this machine with dual-arm, can produce 2~4 types of raw materials with high capacity at the same time.
HT-F7S pick and place machine feature
★ X-axis, Y-axis and platform use high-end magnetic levitation motor + servo motor, which improves the running accuracy and feed speed.
★ 5 sets of cameras: a Mark recognition camera, 2 nozzle debugging cameras and 2 feeder debugging cameras to ensure the accuracy of SMT.
★ Powerful functions: Equipped with high-speed motors and feeders of different sizes, it can complete the placement of different types of LED products.
★ Simple operating system: full English graphical interface, easy to operate. Intelligent programming, all programs can be stored, edited and recalled.
★ Maintenance: The operating system is simple and maintenance is very convenient. Maintenance costs and wearing parts costs are very low.
★ ETON is independently researched and developed with independent intellectual property rights.
★ Support customization
Technical parameter
| HT-F7S pick and place machine | |
| Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg |
| PCB Size | Max:1200*330mm Min:100*100mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Software | R&D independently |
| No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | |
| Mounting speed | 150000-180000CPH |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| No. of feeders station | 68PCS |
| No. of nozzles | 34PCS |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| Feeding way | Electric feeder with double motor |
Why choose ETON HT-F7S pick and place machine
| ETON HT-F7S | HCT HCT-830L | |
| No. Of heads | 34pcs | 36pcs |
| Optimal speed | 180000cph | 170000cph |
| Mounting precision | ±0.02mm | ±0.03mm |
| Weight | 1700mm | 1200mm |
| Company business model: | manufacturing + trade | trade |
|
Conclusion: ETON pick and place machine more higher speed, precision and stable, and ETON has an industrial park of 52,000 square meters for R&D and production of machines; We has 132 patent certificates, and its products have been certified by CE, CCC, SIRA, RoSH, etc; There are showrooms, offices and local engineers overseas, like India, Egypt,Turkey,etc |
||
Services
FAQ
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q. Can I pay by L/C?
A. The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
