Product Details:
Payment & Shipping Terms:
|
| Model: | HT-E8S-1200 | Dimension(L*W*H): | 2550*1650*1550mm |
|---|---|---|---|
| Total Weight: | 1700kg | PCB Thickness: | 0.5-5mm |
| No.of Heads: | 12PCS Single Module | Co.of Feeders Station: | 28PCS Single Module |
| High Light: | SMT Line LED lights making machine,28PCS Feeders LED lights making machine,Windows 7 LED lights making machine |
||

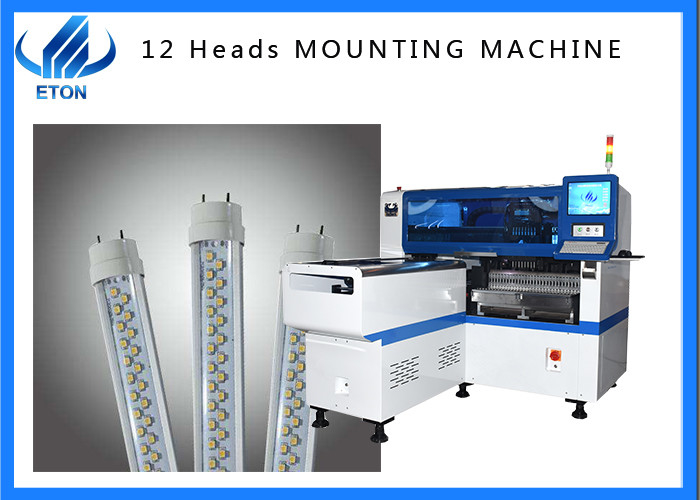

LED lights making machine Whole SMT line any PCB processing

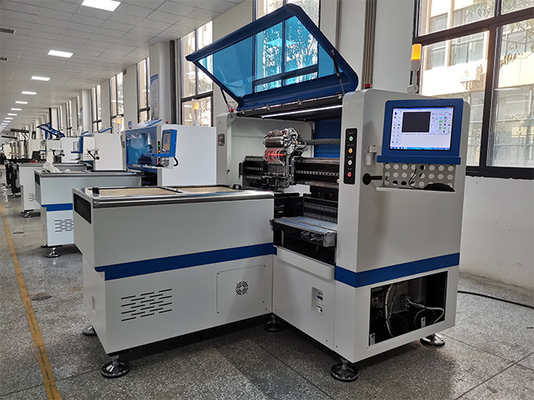

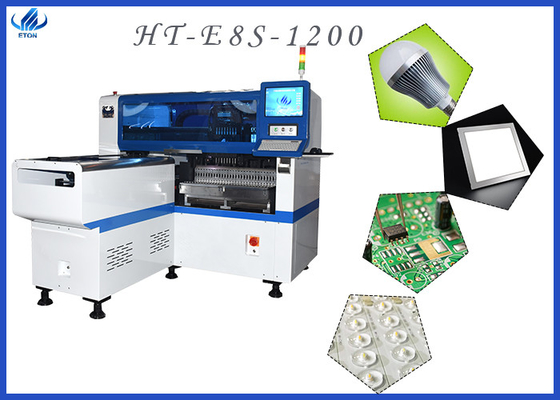

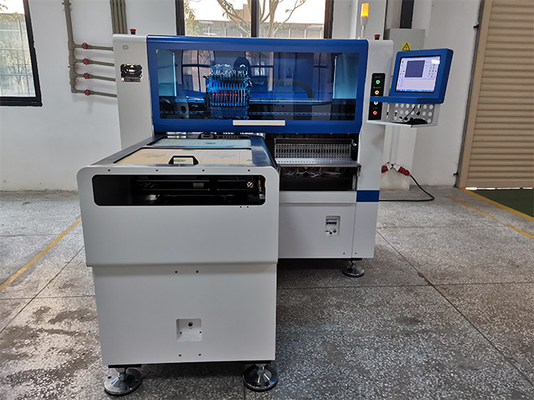

E8s-1200 introduction
If you want to produce all kinds of LED lights, what are the good recommendations? Yes, we recently have a hot-selling machine ht-e8s-1200, which is suitable for mounting all kinds of LED lights, DOB bulbs, LED bulbs, panel lights, downlights, street lights, light tubes, soft light strips, display screens, circuit boards, etc E8s mounter is suitable for larger and longer PCB boards, which mainly depends on the size of its PCB board. The largest PCB board size is 1200*500mm, and the smallest PCB board size is 100*100mm. This is undoubtedly not a powerful competitive multi-function machine in the SMT industry. It adopts domestic.
Parameter
| Model | HT-E8S-1200 |
| Dimension | |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Market
80% of the domestic market in China are our partners. We have helped thousands of people build their own factories and achieved excellent results
Of course, we don't only have domestic customers. We have many customers abroad, such as rk, soary, calcom, polycab, etc. will you be our next one?
Packing
As for the packaging of our machine, we first wrap the machine with film, then wrap the machine with soft film, and then vacuum package it with wooden box, which will fix each corner of the machine with the wooden box to prevent water from entering the machine during transportation.
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
