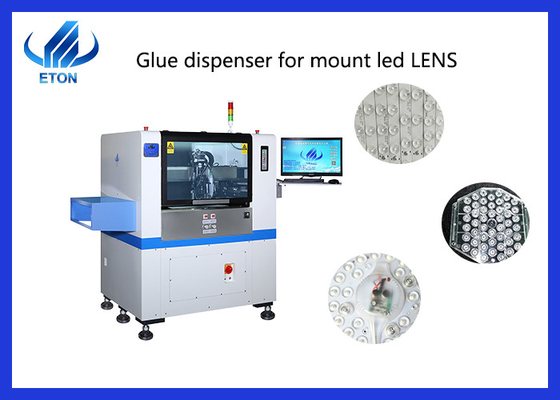

LED Lens Production Line Visual position compensation glue dispenser Machine
Machine introduction:

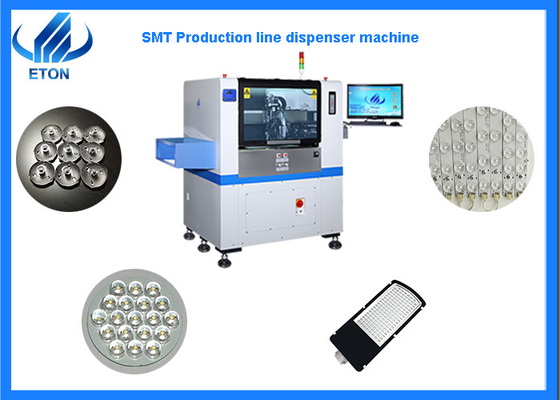

1.The SMT glue dispenser is a kind of equipment in the front stage of the SMT placement machine process. It is to place a special glue on the PCB circuit board that needs to be patched to fix the patch components.
2.It is often used to produce lenses, and the SMT process is only inconsistent with the materials used in the printing step.
3.ETON D12-600 dispensing machine, the ideal dispensing speed is 90000CPH, the dispensing speed is very fast, and it is very good at the production of lenses.
PCB:
The largest PCB board is 600*500mm, and the range of products that can be made is very wide. No matter how big the product is, it can be satisfied.
The machine is easy to operate and the service is very good, if you buy our machine, we will also send our engineers to your factory to install the machine and train the staff for free until you can operate the production yourself.
Machine main parameter
| Model |
HT-D12-1200( Automatic glue dispenser machine ) |
| Dimension |
1800*1050*1550mm |
| Weight |
800KG |
| Max PCB size |
1200*500mm |
| Dispensing speed |
90000 CPH |
| Dispensing height |
<15mm |
| Dispensing accuracy |
0.1mm |
| Max running speed |
1200mm/sec |
| Dispensing mode |
Pneumatic injection value |
| PCB Clamping |
Adjustable pressure pneumatic |
| Drive way |
Magnetic linear motor drive |
| Heating temperature |
200 ℃
|
Machine features
1. English interface option, easy to operate.
2. CCD positioning system, visual positioning compensation
3. Large size track,suitable for different size of PCB
4. Contactless high speed injection dispensing head, dispensing glue continously with high efficiency
5. Intelligent dispensing head ensure good performance, high efficiency and lower glue wasting
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Packages:
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ:
1. If there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
2.How about the quality of your products?
We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
3.This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
