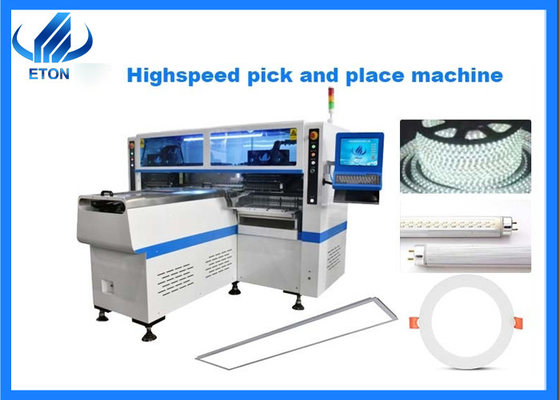

Magnetic linear motor 68 Head led assembly 250000cph highspeed SMT Mounter
HT-F9 Pick and place machine main features:
1. High speed:
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.Producing 4 types materials at the same time.Optimum mounting speed can reach 250000cph.
2.High precision:
High-end magnetic linear motor and servo motor.
5 PCS cameras, including 2 nozzle debugging cameras, 2 feeder debugging cameras, 1 MARK camera.
3.Components range:LED3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers etc.
4.Software system: The software is independently developed by the company, the operation is simple and easy to use, and free lifetime upgrades are available.
5.Widely application:Can products LED tube, panel, 0.5 M/0.6/0.9 M/1 M/1.2 M LED flexible strip and rigid PCB, other types of linear light etc.
HT-F9 Pick and place machine main parameter:
| Model |
HT-F9(Dual arm magnetic linear LED high speed pick and place machine |
| Dimension(L*W*H) |
2700*2300*1550mm |
| Weight |
1700kg |
| PCB thickness |
0.5~5mm |
| Mounting precision |
±0.02mm |
| Mounting mode |
Group to take and group to mount |
| Components |
LED3014/3020/3528/5050 and resistor, capacitors,bridge rectifiers |
| Mounting height |
≤5mm |
| Mounting speed |
200000~250000 CPH |
| NO.of camera |
5PCS(Digital camera) |
| No. Of feeders station |
68 PCS |
| No. Of head |
68 PCS |
| X,Y Axis drive way |
High-end magnetic linear motor+servo motor |
| Feeding way |
Electric feeder with double motor |
Pick and place machine SMT Production line:
ETON over decades years experience in SMT field, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semi automatic line, also with higher printing precision could produce high quality electrical products. Here are the HT-F9 Pick and place machine Semi-automatic SMT line solution layout.
Services:
1. Maintenance period 1 year.
We'll provide maintenance services for you in one years after you place the order. So you no worry about the quality issues while you using our machine.
2. Software and hardware lifetime maintenance
Free service for you , we are on line 24 hours all the time , we would provide the best services for you if you need .
3Provide latest information about technology and equipment
The technology updated so fast, so we would share you the newest good information to you
4.Visit customers regularly and gather information.
We would make a schedule plan to visit all our customers to see if there is any more we can do for you. best service for you all the time .
Certifications:
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112
Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc. ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines.
Machine Packaging:
Step 1 Plastic film packing and Foam cotton packing:
preventing the dust and water ,protecting from hitting and shaking while ship
Step 2 Vacuum tin foil packing:
protection from oxidation and water, keep dry of machine during transportation
Step 3 Standwooden box packing:
Prevent the machine from being damaged and facilitate transportation
Finally,professional industrial drivers team send the wood box to the shopping container safety.
FAQ:
1.Can I pay by L/C?
The procedure of L/C payment is complicated, which will waste a lot of time on payment. As a result, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity. When there is an error in the letter of credit, you will have to pay a fee to correct the error, which will increase your cost. So in general we support T/T Payment.
2.Do you have any customers in India? How many machines are there in India?
Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over hundreds of machines to India and we go to the exhibition every year.
3.Why their machine price is so much lower than yours?
You said that there are some peeling machines cheaper than us on the market, which does exist, but their selling point is price, and our selling point is quality. We can guarantee you the quality of ETON pick and place machine, and the value is far more than our price.
