Ultra high speed 136 PCS of heads for any length of flexible strip SMT mounter
Machine main features
- Wide components range: High speed modular heads apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc.
- Unique design component leaking detection and individual component refill function. Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.
- Ultra high speed capacity: 500,000 CPH
Machine main parameter
| Model |
T9-2S |
| Dimension |
(L)3454*(W)3035*(H)1777 mm |
| Total weight |
3100 kg |
| PCB size |
250(±10)mm* Any length |
| PCB thickness |
0.1-0.5 mm |
| PCB clamping |
Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way |
Group picking and group placing |
| Mounting mode |
Double rail + Four groups of placement heads |
| No. of camera |
10 sets (Digital camera) |
| Software |
R&D independently |
| Repeat precision |
±0.05 mm |
| Mounting height |
≦5 mm |
| Optimal speed |
Double side: 500,000 CPH
Single side: 250,000 CPH (Optimum speed)
|
| Components range |
LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption |
9.6 KW |
| No. of feeder station |
Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles |
Double side: 136 PCS (Single side: 68 PCS) |
Machine application

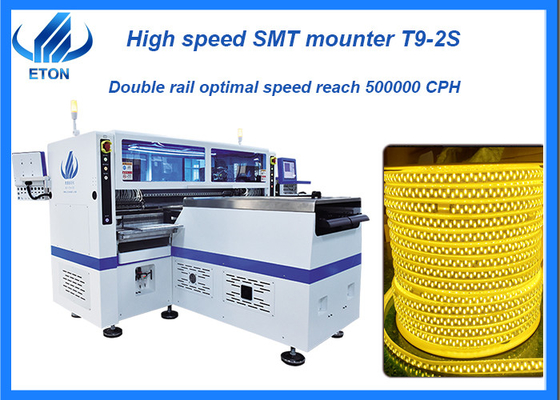

T9-2S high speed mounter which is made for flexible strip, double rail with four placement heads, optimal capacity reach 500000.
Our advantage
- Focusing on SMT high speed pick and place machine more than 20 years
- The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
- ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
