Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | Brand-new |
|---|---|---|---|
| Weight: | 3100 KG | Mounting Speed: | 50W CPH |
| Dimension: | (L)3454*(W)3035*(H)1777 Mm | Feeders: | 136 Pcs |
| Pcb Thickness: | 0.1-0.5 Mm | Mounting Way: | Group Picking And Group Placing |

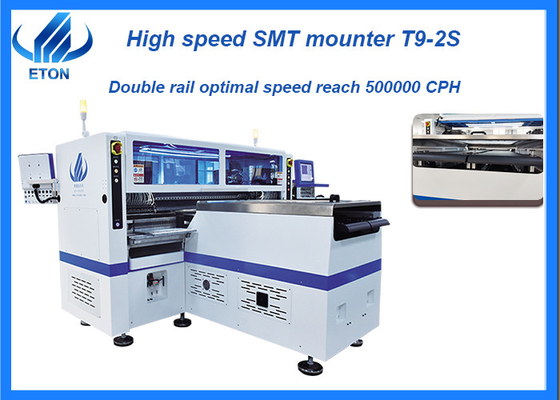

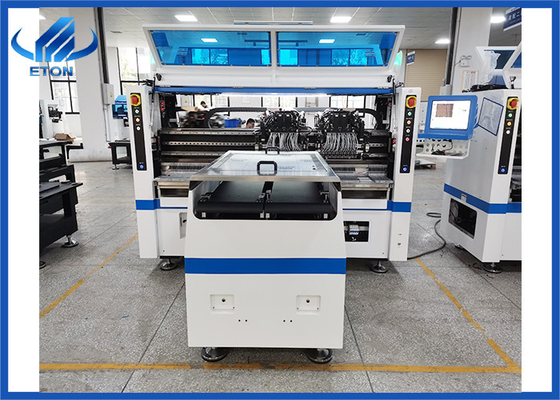

Super speed 50W for any length of FPCB 136 heads SMT placement machine
Description
High speed modular heads T9-2S apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. With unique design component leaking detection and individual component refill function, adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
| Model | T9-2S |
| Dimension | (L)3454*(W)3035*(H)1777 mm |
| Total weight | 3100 kg |
| PCB size | 250(±10)mm* Any length |
| PCB thickness | 0.1-0.5 mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| No. of camera | 10 sets (Digital camera) |
| Software | R&D independently |
| Repeat precision | ±0.05 mm |
| Mounting height | ≦5 mm |
| Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |
| Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption | 9.6 KW |
| No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |

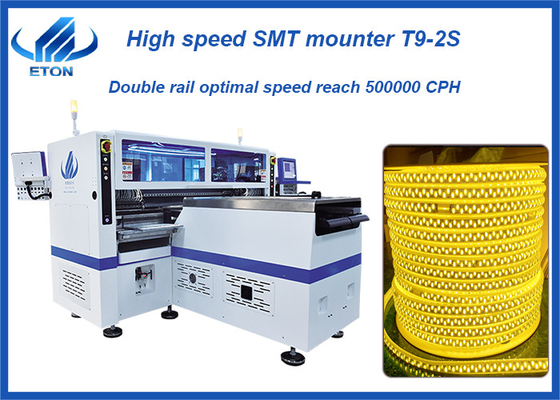

Machine application
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. Can you accept CIF as the quoted price?
A. We usually accept EXW as the quoted price.
Q.Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India to provide considerable service to our clients.
