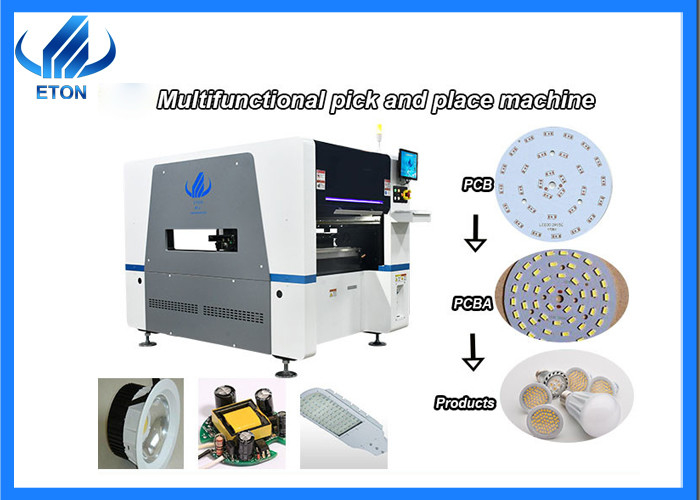

Magnetic linear motor LED bulbs Mounter 10 Heads 40000CPH SMT Chip Mounter
RT-1 Pick and place machine description:
RT-1 machine is the most popular machine in our company, it has high cost performance
With 10 heads and 32 feeder, it can transport a variety of materials, and the ideal production capacity can reach 40000 CPH.
RT-1 Pick and place machine features:
The PCB size of this model is 450*350mm. Because it is a multi-function machine, it is suitable for all LED light PCB boards that meet this size range.
Components:LED chip,capacitors,resistors,shaped components etc.
It is suitable for mounting various components. There are many kinds of finished lamps. It is a machine with high cost performance.
Machine main parameter:
| Model |
RT-1 |
| Dimension(L*W*H) |
1200*1930*1500mm |
| PCB length width |
Max:450*350mm;Min:80*80mm |
| PCB thickness |
0.1~6mm |
| Mounting mode |
Group picking and separately placing, separately picking and separately placing |
| No. Of camera |
2 Sets of imported camera.vision for the flight identification,mark correction |
| Mounting height |
≤15mm |
| Mounting speed |
40000cph |
| Power consumption |
4KW |
| No. Of feeders station |
32 PCS single module |
| No. Of head |
10 PCS Single module |
| Mounting precision |
±0.04mm |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
| Feeding way |
Electric feeder with double motor |
Pick and place machine application:
RT-1 pick and place machine has a particularly wide rang of applications. The PCB size of this model is 450*350mm. Because it is a multi-function machine, it is suitable for all LED light PCB boards that meet this size range. Such as led bulb,street light,power driver,circuit board,down light etc.
Exhibition:
Domestic Exhibition: Guangzhou international lighting Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Overseas Exhibition: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Our client:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Machine Packaging:
Step 1 Plastic film packing and Foam cotton packing:
preventing the dust and water ,protecting from hitting and shaking while ship
Step 2 Vacuum tin foil packing:
protection from oxidation and water, keep dry of machine during transportation
Step 3 Standwooden box packing:
Prevent the machine from being damaged and facilitate transportation
Finally,professional industrial drivers team send the wood box to the shopping container safety.
FAQ:
1.Can I pay by L/C?
The procedure of L/C payment is complicated, which will waste a lot of time on payment. As a result, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity. When there is an error in the letter of credit, you will have to pay a fee to correct the error, which will increase your cost. So in general we support T/T Payment.
2.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
3.Is your software interface in English?
English interface and Chinese interface are both available.
4.This is the first time I use this kind of machine, is it easy to operate?
Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
