Product Details:
Payment & Shipping Terms:
|
LENGTH: | 2700 MM | WIDTH: | 2300 MM |
---|---|---|---|
HEIGHT: | 1550 MM | PCB SIZE: | MAX:1200*330MM MIN:100*100MM |
MODEL: | HT-F9 | NO.HEAD: | 68PCS |

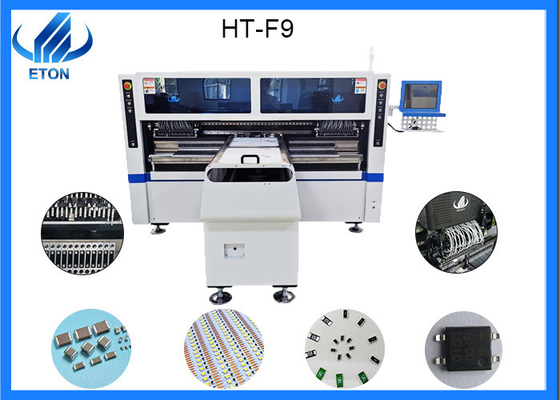

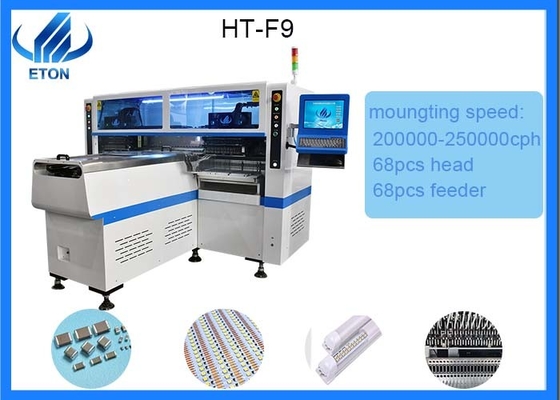

DOB bulb pick and place machine
Product Details
Showroom Location:Turkey, India
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty of core components:1 Year
Core Components:R&D by Eton
Place of Origin:Guangdong, China
Brand Name:ETON
Model Number:HT-F9
Warranty:1 Year, 1 year
Place of origin:China
Dimension:2700*2300*1700mm
Total weight:1700kg
Power:380AC 50HZ
Power consumption:6KW
Mounting speed:250000CPH
Mounting height:<=5mm
Visual camera:5sets of imported camera
After Warranty Service:Video technical support, Online support
Local Service Location:Turkey, India
After-sales Service Provided:Video technical support, Online support
Supply Ability
50 Set/Sets per Month
Product presentation
●dual arm foure module mounter
●High speed machine
●To produce four different products at the same time.
●Touch screen monitor
●Single direction transmission
Exclusive Patented Technology
►Electronic feeder feeding system
►Vision alignment flight identification,mark correction
►Non-stop material re-loading function
►Auto-optimization after coordinates generated ,etc.
Certificate of honor
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”
Components&application
Mounting component:led chip,capacitor,resistor,bridge rectifiers
Application:power driver,electric board,linear bulb,household appliance etc.
Packaging & Shipping
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
After-sale Service
1.we will send our engineer to your factory to install machine and training freely.
2.We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
3.Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
FAQ
Q:which kind of raw material should i prepared for SMT line?
A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
Q:Can you support whole SMT line?
A:yes, we can provide whole SMT line solution if you want, we are professional in this field.
Q:how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
