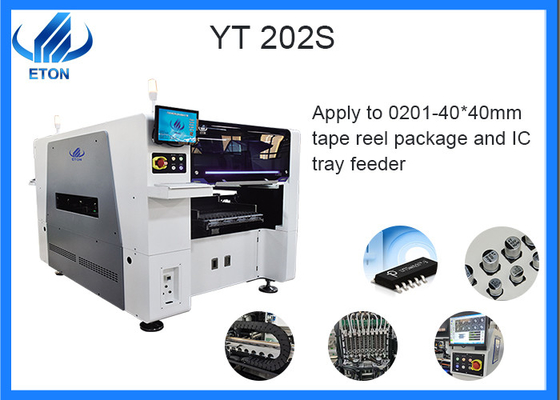

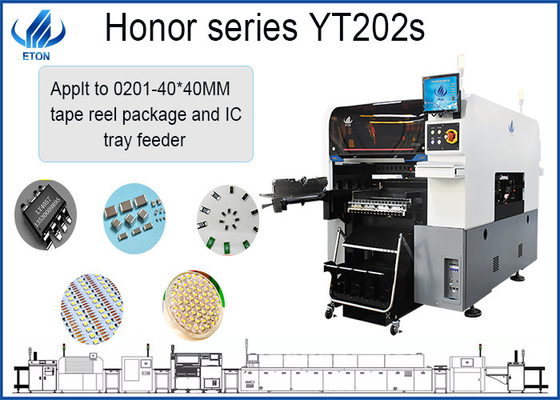

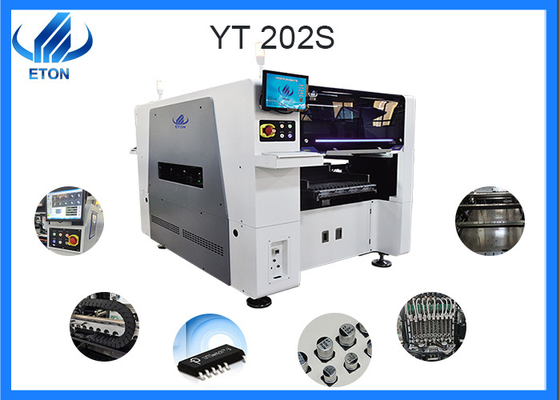

LED LIGHT PICK ADN PLACE MACHINE WITH DOBLE MOUNTING HEAD SPEED OF 80000CPH AND FOR LED CHIPS MONGTING

LED LIGHT FOR PICK ADN PLACE MACHINE

Daily maintenance for SMT machine

check parts name, process, nozzle fixture check buffer action, if the action is not smooth coated with a thin layer of lubricant, if the fixture loose, tight. Move the lens to clean the dust and residue on the lens. X axis lead screw check whether there is debris or residue, if necessary to clean. X-axis guide check whether the grease has hardened and residue adhesion. Y-axis lead screw check whether there is debris or residue, if necessary, to clean. Y-axis guide check whether there is any hardened grease and residue adhesion. W shaft screw screw check whether there is debris or residue, if necessary to clean, air interface check y-ring and o-ring aging, if necessary to replace.

Production Details

Warranty of core components:1 Year

Core Components:R&D by Eton

Place of Origin:Guangdong, China

Brand Name:ETON

Model Number:YT202S

Place of origin:China

Dimension:2788*1686*1375mm

Total weight:1700kg

Power:380AC 50HZ

Power consumption:6KW

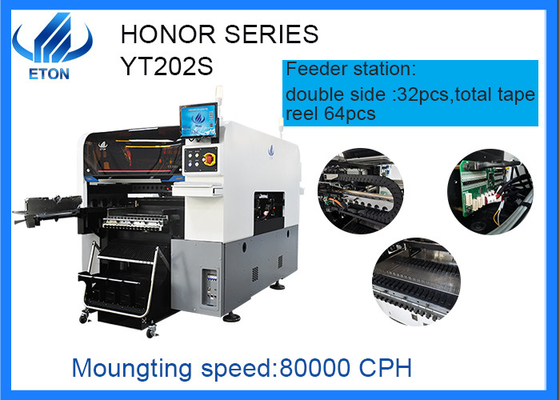

Mounting speed:80000CPH

Visual camera:4sets of imported camera

After-sales Service Provided:Video technical support, Online support

Supply Ability

Supply Ability

50 Set/Sets per Month

The honor of the company

1.national hi-tech Enterprise

2.Guangdong hi-tech Enterprise S

3.Shenzhen hi-tech Enterprise

4.Shenzhen well-known brand

5.Shenzhen Equipment Industry SMT sub-sector leading enterprise

6.2015 LED Technology Innovation Award

7.China 4th LED Outstanding Award Industry Special Contribution Award

Related machine

Loader machine

Also known as falling machine, stacking machine, stacking machine, lift plate machine, palletizing machine.

Advantages: the utility model does not need the special equipment foundation, and can be placed on the hardened flat ground to be matched with the plate sending machine, which reduces the labor intensity of the operating workers, improves the working efficiency, and saves the labor, the whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide range of application.

machine parts

Axis Configuration

X-axis: the mobile header component is parallel to the PCB transfer direction.

Y-axis: the moving head component is perpendicular to the PCB transfer direction.

Z-axis: controls the height of the working head assembly.

R axis: control the rotation of the nozzle axis of the working head assembly.

FAQ

Q:Do you have wave soldering machine?

A:Sorry, at present, we are the manufacturer of pick and place machine, but also provide the related SMT machine, such as reflow oven, stencil printer, conveyor, loader machine and so on.

Q:Can i visit the production site of your machines in India?

A:i ahve to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.
