SMT SINGLE RAIL CONVEYOR

SMT SINGLE RAIL CONVEYOR
SMT SINGLE RAIL CONVEYOR SMT SINGLE RAIL CONVEYOR

Large Image :  SMT SINGLE RAIL CONVEYOR

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: ET-C500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: WE USE VACUUM WOODEN BOC PACKAGE
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50PCS/Month
Detailed Product Description
Warranty: 1 Year Condition: New,original,100%New,Brand-new
Name: PCB Conveyer,Belt Conveying Type SMT PCB Buffer Conveyor System SMT PCB Conveyor Application: SMD Production Line,Electronic Production,SMD PCB Conveyor,SMT PCB Assembly Production Time,PCB Transport
Usage: PCBA,LED,SMT Assembly Line,transport Pcb Board Type: SMT Machine Related Products,Fully Automatic,pcb Conveyor,Belt Conveyor
Speed: Adjustable From 0.5 To 9mm/min Width Adjustable Range: 50-350mm

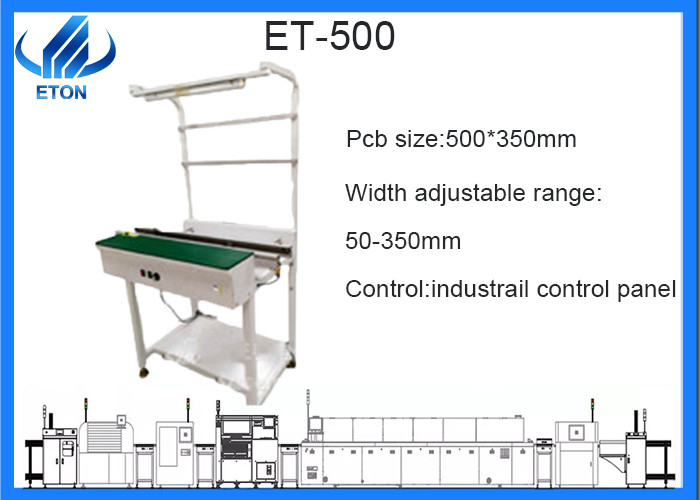

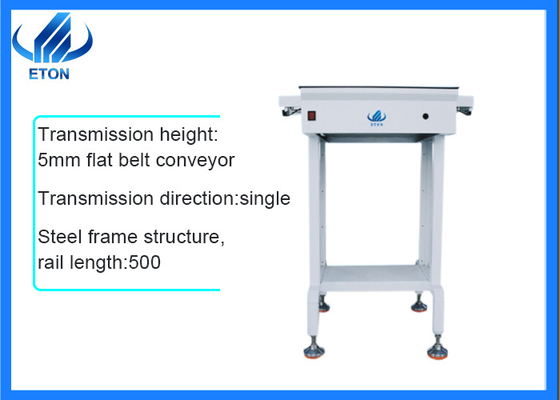

Single rail conveyor ET-C500

Specification:

Model:ET-C500

Steel frame structure,rail length;500

Width adjustable range;50-350mm

Pcb size:500*350mm

Transmission height:5mm flat belt conveyor

Speed:adjustable from 0.5 to 9m/min

Motor:one set of 25 W stepper motor

Control:industrail control panel

Transmission direction:single(left-right)

One section of control,two sensors

SMT SINGLE RAIL CONVEYOR 0



Conveyor function

For connections between SMT production lines, PCB buffering, inspection, testing, or electronic component.



The connecting platform generally comprises a frame

two parallel rotating conveyor belts arranged on the frame, a circuit board arranged on two conveyor belts for conveying, and an existing conveyor belt generally fixed on the frame, the width of the circuit board conveyed on the two conveyor belts is limited, which is disadvantageous to the transportation of the circuit board with different sizes, thus making the applicability of the connecting platform low.



Operation Flow

1.1Before power-on Check

1. check the supply power cord is broken.

2. Check that the equipment is properly grounded.

  • Check that the control buttons are reset.
  • Check whether the guide rail width is appropriate.
  • Check that the belt is loose.
  • Above no exception can be started to prepare for work.

2.2 order of operation

1.control panel note finish button without self-lock, each click, that check is completed,pcb through, continue to run. 2.Pass pcb board without check, automatically pass; 3.press check means pcb board need manual check, need to use with finish.

4.Power is the powerswitch, press power

5.Light is the light switch.



3.3The operating step explains

1. adjust the belt running speed according to the speed of the front and back connection.

2. automatic control mode

a. Press the Power Button;

b. Press the LIGHT button;

c. Press the PASS/CHECK button.

Manual control mode

a. Press the POWER button;

b. Press the LIGHT button;

c. When you are finished, press the FINISH button.

d. Turn it off and press the POWER button



Attention

SMT SINGLE RAIL CONVEYOR 1

1. Ensure that the transportation part, belt, belt pulley and transportation guide rail no foreign body, to ensure smooth and smooth transportation.

Regularly to the transmission part and rack or wide screw refueling, refueling shall be carried out in the shutdown state.

3.In case of power failure should be immediately closed equipment power switch.
