Condition: | New,100% Original,Screw Compressor Chiller | Plate Type: | Screen Printer |
---|---|---|---|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation | Automatic Grade: | Automatic |
Warranty: | 1 Year,One Year,12 Months | Product Name: | SMT Stencil Printer |
Name: | Automatic SMT Stencil Printer,Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine | Application: | SMT PCB Assembly Production Line,printing The Solder Cream Onto The PCB,stencil Printer |
Type: | SMT Machine Related Products | Pcb Thickness: | 0.6~6MM |
Printing Accuracy: | ±0.025mm | MODEL: | ET5235 |

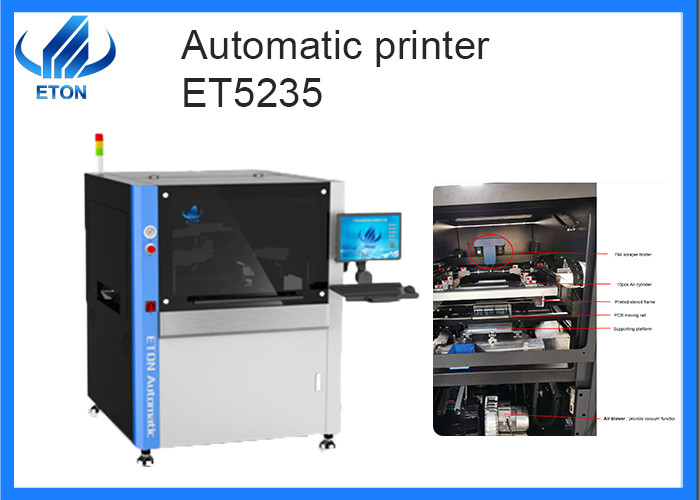

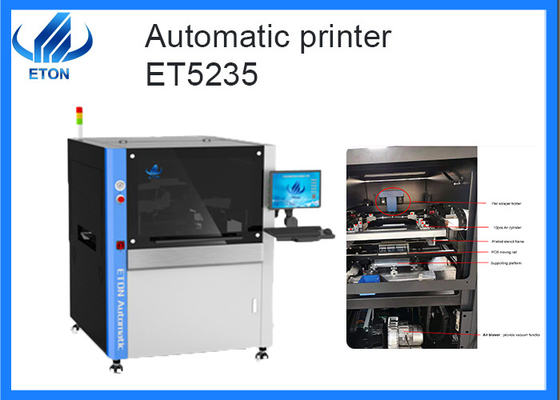

FUll automatic vision stencil printer machine
Automatic printing machine constitute and features
PCB transporte and clamping system
• The optimally designed module drive structure effectively improves the stability of the plattorm calibration,
balanced contact between the PCB and the steel mesh.
• Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully
• Programmable transport speed control makes PB stop more precise.
• Unique crafted internal gear conveyor belt to prevent jamming.
• The PCB loading direction can be selected and combined freely.
Stencil positioning system
•Arch bridge-shapea suspension hanging direct-connect scraper
•The size of steel mesh is universal, With good and wide applicability
•Segmented tixed steel mesh frame
scraper system
•Embedded scale, never fall off•The fully closed-loop scraper pressure feedback device monitors the scraper pressure at all times, making
•Slide rail type scraper system, improve operation stability and prolong lifetime
•According to the different pressure requirements of the front and rear squeegees and the stability of the -lifting and lowering, to prevent the leakage of solder paste, the blade has a certain elastic clamping design,the pressure of the squeegee, the lifting speed, the printing speed, and the printing range are all software adjustable. Provide a variety of demoulding methods to meet different requirement of PC, providing customers with a good printing control platform.
•Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing
•Programmable Suspension Self-Adjusting Stepper Motor Drives Print Head
•Cast aluminum Scraper beam to ensure smoother running of scraper
operating interface
•Easy-to-learn and easy-to-use friendly operation interface
•With good Human-machine dialogue function
•Make program files with teaching and navigation functions, with prompts for each step
•One-key switch between Chinese and English, with operation log, fault record analysis and other functions
image and optical system
•X, Y axis adopts high-precision grinding ball screw, driven by servo motors at both side
•The polarizer is added inside, and the MARK of different shapes is automatically and accurately
grasped, and the upper, lower and coaxial three-way uniform light sources
Machine parameter

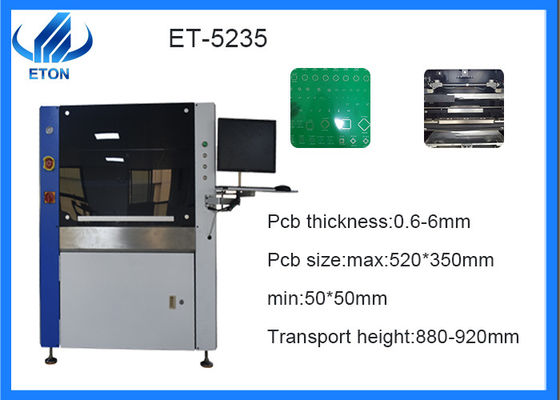

Model:ET5235
Screen size:max size:737mm min size:470mm
Thickness:25-40mm
Pcb size:max:520*350mm min:50*50mm
Pcb thickness:0.6-6mm
Transport height:880-920mm
Transport speed:max:1200mm/s
Squeegee pressure:0-10kg/cm2
Squeegee speed:6-300mm/sec
Pcb transfer overhead:10mm
Printing accuracy:+-0.025mm
Exclusive Patented Technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
