| Name: | Pick And Place Machine | Model: | YT402 |
|---|---|---|---|
| Heads: | 20 PCS | Feeder Station: | 64PCS (double Side) |
| System: | Windows 7 | PCB Thickness: | 0.5-4.5mm |
| Software: | R&D Independently |

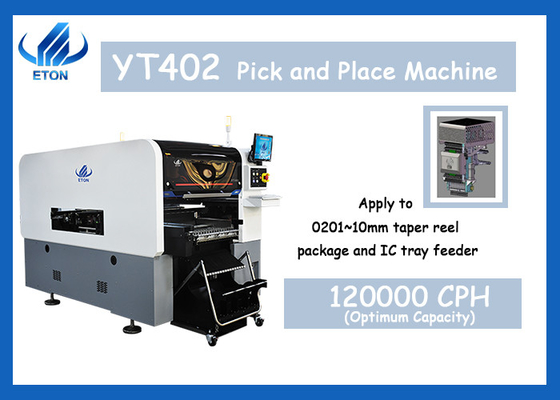

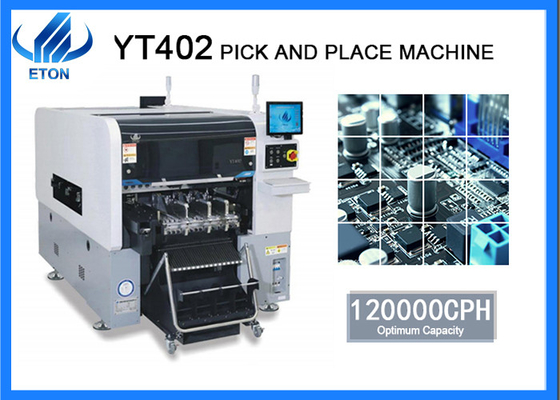

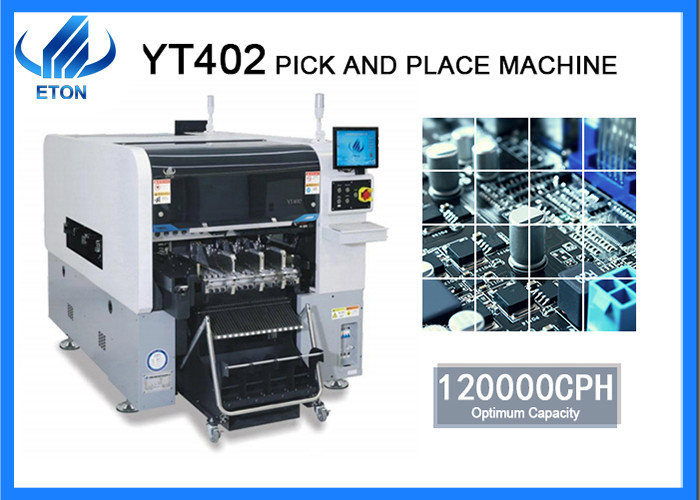

led bulb assembly machine higher precision with 20 heads SMT mounter machine
The technical Parameter of led light assembly machine
| Name | pick and place machine |
| Model | YT402 |
| Mounting speed | 120000 CPH(optimum speed) |
| PCB size |
MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
| No. Of heads | Double side: 40 PCS(single side: 20 PCS) |
| Feeding way | Intelligent double head feeder |
| Off-line programming | available |
| No. Of camera |
4 set (digital camera) Bottom vision camera recognition Vision alignment+ mark correction |
| Components range | Min 0201-10*10mm packages and IC etc |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
The advantages of YT 402 led light assembly machine
change the traditional feeding way: docking cart, smart double head tape feeder, which can achieve stable, accurate and high speed feeding
Adopt fixed line scan camera and mark camera, high precision mark recognition system, apply to any shape mark and lens, has a wide range of applications
Adopt brand new self-developed high precision placement head, high speed multi modular head and non replace modular head
each placement head adopt the independent detection function, improve placement performance.
The production line of YT402 led light assembly machine
full automatic line:save more labors, generally only need a worker is enough; the printing and mounting precision higher, reduce the error of manual operation.
Customer factory show
We are very honored that our equipment can be selected by many customers. We have more than ten years of experience in the construction of LED light production lines.
Exhibitions
Semi automatic stencil printer machine:
Advantages: very simple operation, printing speed is also very fast, simple structure
Disadvantages: printing process parameters controllable point is less, printing precision teaching is low, solder paste demold poor, generally applicable to 0603(inch system) above components, pin spacing is greater than 1.27mm PCB printing process.
Full automatic stencil printer machine:
Advantages: high precision of printing alignment, good solder paste release effect, stable printing process, suitable for the components with close printing spacing;
Disadvantages: High maintenance cost, high knowledge level of operators.
