| Name: | Pick And Place Machine | Heads: | 20 PCS |
|---|---|---|---|
| Feeder Station: | 64PCS (double Side) | System: | Windows 7 |
| PCB Thickness: | 0.5-4.5mm | Mounting Speed: | 120000PCH (optimum) |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
led display making machine higher speed 120000CPH led machine assembling

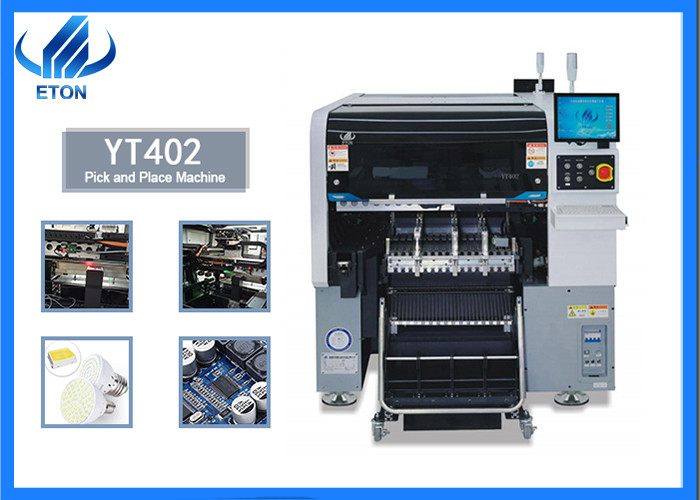

The features of YT402 led display making machine
change the traditional feeding way: docking cart, smart double head tape feeder, which can achieve stable, accurate and high speed feeding
Adopt fixed line scan camera and mark camera, high precision mark recognition system, apply to any shape mark and lens, has a wide range of applications
Adopt brand new self-developed high precision placement head, high speed multi modular head and non replace modular head
each placement head adopt the independent detection function, improve placement performance.

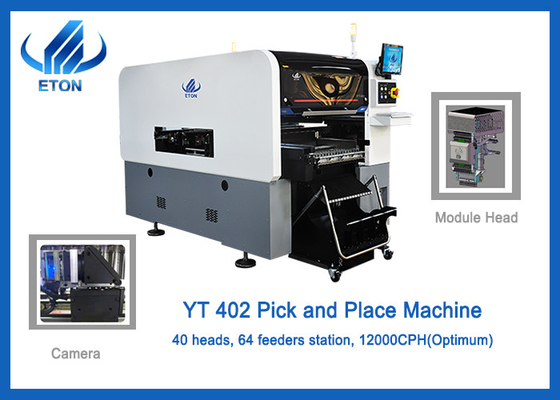

The Parameter of YT 402 led display making machine
| model | YT 402 |
| Mounting speed | 120000 CPH(optimum speed) |
| Components range | Min 0201-10*10mm packages and IC etc |
| No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
| No. Of heads | Double side: 40 PCS(single side: 20 PCS) |
| Feeding way | Intelligent double head feeder |
| PCB size |
MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| rail | 2 rail, 2 gantries( rail 1,4 are fixed rail) |
| No. Of camera | 4 set (digital camera) |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
The production SMT line of led display making machine
LED display SMT mounting process: divided into the front and the back of the mounting. The general front mounting is mainly mounted lamp beads, the opposite side is mounted power driver
Applications and components
Multifunctional pick and place machine YT402 has a wide range of applications, including led light ( bulbs, DOB, street light, down light ceiling light etc. ) , power driver, electric board, LED display etc.
For YT402 pick and place machine, it also can mount all kinds of Components. It is apply to 0201~10mm tape reel package and IC tray feeder.
Company profiles
ETON is a top manufacturer of SMT pick and place machine in China, we have helped many clients to set up SMT production lines and provided SMT solutions. Since ETON was established, we have more than 11 years experience. The machines have been exported to more than 20 countries and regions. The intelligent industry Park also was set up in 2020, all of our machines are produced and manufactured by ourselves. We have our own R&D team, and the software is R&D by our own engineers.
Certificates
Package and delivery
Composition of the display: LED display is an electronic display composed of LED dot matrix. The display content is changed by switching on and off the traffic light. It is mainly divided into display module, control system and power system.
