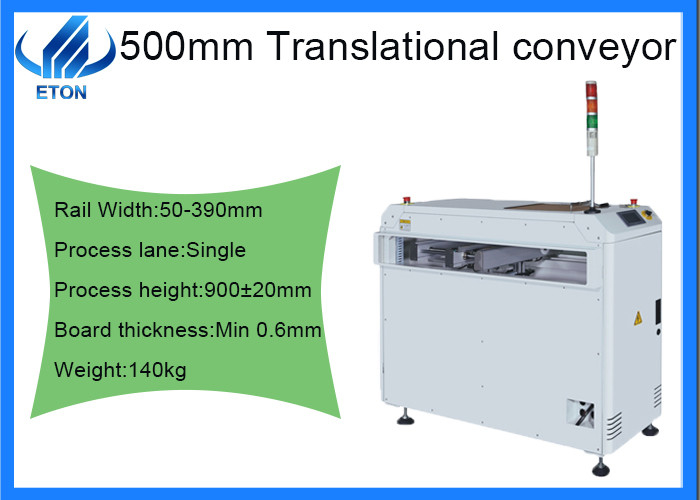

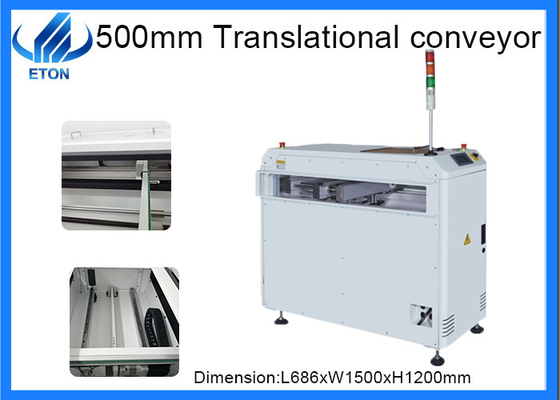

SMT MACHINE 500mm Translational conveyor
SPECIFICATION
Model:500 mm translational conveyor
Dimension:L686xW1500xH1200mm
Rail Width:50-390mm
Process lane:Single
Trolley amount:1
Cycle time:Approx 10 sec
Process height:900±20mm
Flow direction:Left to right or Right to left
Board thickness:Min 0.6mm
Weight:140kg
Power requirement:220Vac 50/60Hz ,1ph
Features
The use of PLC touch screen transmission control around mobile data, photoelectric sensor automatically to the origin, can remember the current parameters for each action: independent electric box, internal components are all well-known brand components, PLC+ full color touch control system;
The inlet and outlet of the board and the starting signal are controlled by Japan Omron photoelectric switch, and all the switch and inlet and outlet signals are controlled by PLC.
The control part is equipped with speed, distance setting, time setting and acousto-optic alarm functions. The stepper motor adopts high-quality stepper motor to drive the vehicle to move from side to side to ensure accurate positioning and long service life of the running flat bridge.
Synchronous belt adopts imported precision synchronous belt, smooth, wear-resistant, silent;
The guide light garden adopts 22mm stainless steel guide to ensure the stable operation of the vehicle;
The length of the machine can be determined according to the high distance between the two lines of the patch line and the size of the plate.
Service
1. Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
2.Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
