Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine

Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine
Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine

Large Image :  Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE, CCC, SIRA
Model Number: ET-S1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum adsorption, wooden packing
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Name: Semi-automatic Stencil Printer Machine Module: ET-S1200
Warranty: 1 Year Condition: New
Scraper Speed: 0-100 Mm/sec Weight: 360kg

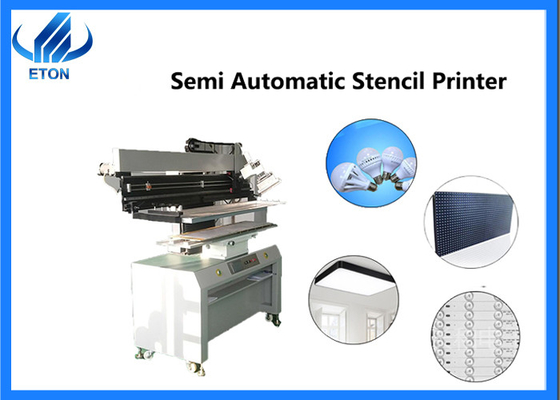

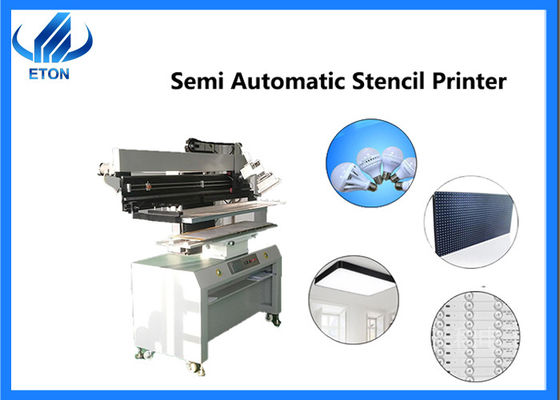

Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine



Features of Semiautomatic stencil printer

  • The governor motor drive scraper, combining precision linear guide, ensure the printing precision;
  • Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
  • The scraper holder can adjust forward and backward, to select the suitable printing position;
  • Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
  • Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
  • Can be set unidirectional and bidirectional multiple printing methods.



Specifications



Model ET-S1200
PCB size 1200×300 mm
Plate Area 1250×320 mm
Stencil Frame Size 470×370 mm~1300×550 mm (L×W)
Positioning way positioning pin
Scraper Speed 0-100 mm/sec
Power 220V single phase, 50/60 HZ
Power Consumption 120 W
PCB plate thickness 0.2-2.0 mm
Plate Trimming Front/back +/- 10mm Right/Left +/- 10mm
Printing Precision +/- 0.05 mm
Air supply 5-7 KGF/cm2
Weight 360 kg
Dimension (L)1600 x(W)900 x(H)1650 mm




SMT production line

Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.

Pick and place machine: Mount the electronic component at the specified position on the PCB.

Reflow oven: Melt the solder paste and fix it to the mounting element.

Single conveyor: Inspect the quality of assembly and welding to cushion the production line.





Company production

Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine 0

Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

Eton mission: professional, excellent technology, sharing the results.

Eton goal: to create a national brand, build international Chinese enterprise.

Eton purpose: to create value for customers, creating benefits for society.



Our clients

Stable performance PCB printer smt machine 1250*320mm plate area semi automatic solder paste machine 1

We worked with many brands, and received a lot good reputations because of our excellent services and good quality products .

We cherish each opportunity to service for all our customers, aimed to a long term cooperation .



FAQ

Q1: Is engineer free for machine install ?
A: Yes, we will sent engineer to your factory for machine free install and training once you buy our machine.

Q2:Is your machine suitable for manufacturing LED Bulb/Panel light/Lens/Display/Flexible strip light/etc?
A: Yes, SMT Machine is widely applied to all kinds of led lighting and electrical board. Suitable for mounting/printing led
chip3014/3528/5050/etc,0402/0603/0805 resistor, capacitor, transformer, bridge, etc


Q3: Can you support whole SMT line?

A: Yes, we can provide whole line solution if you want. We are very professional on SMT field.





Q4: What is your machines quality?

A: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.



Q5: What is your delivery date?

A: The delivery date is about 20 days upon the full payment.
