Product Details:
Payment & Shipping Terms:
|
Dimension(L*W*H): | 3100*2300*1550mm | Weight: | 1700kg |
---|---|---|---|
PCB Length Width: | 250mm* Any Length | Optimum Mounting Speed: | 200000~250000 CPH |
No. Of Head: | 68 PCS | Feeding Way: | Electric Feeder With Double Motor |

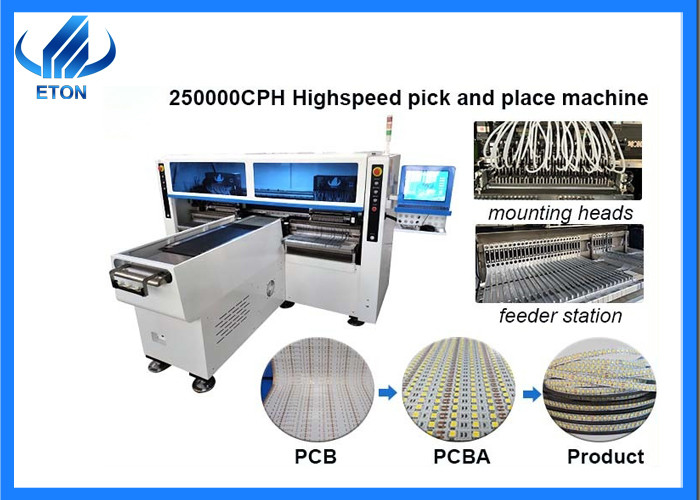

Electric feeder with double motor 250000cph flexible strip highspeed SMT mounter
HT-T9 pick and place machine features:
1.HT-T9 SMT pick and place machine belongs to highspeed SMT mounter,which optimum mounting speed reached250000cph.
2.68 mounting heads(Dual Arm four module , 17 nozzles for each mounting part. Part A or part B can be mounted),68 feeder stations.
3.The PCB Size:250mm*any length,apply to any flexible strip light.
4.Machine software R&D independently by our company,which can provide free update and upgrade.
5.Vision alignment, Mark correction.Calibration automatically, high precision, available for RGB.
6.Components:LED3014,3020,3528,5050 and resistor,capacitors,bridge rectifiers etc.
HT-T9 pick and place machine Technical parameter:
Model | HT-T9 |
Dimension(L*W*H) | 3100*2300*1550mm |
Weight | 1700kg |
PCB length width | 250mm*any length |
PCB thickness | 0.5~1.5mm |
Mounting mode | Group to picking and group to mount |
Mounting height | ≤5mm |
No.of camera | 5 PCS |
Vision alignment, Mark correction | |
Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
Components space | 0.5mm |
Mounting mode | Group to picking and group to mount |
Power consumption | 6KW |
Mounting speed | 200000~250000CPH |
No. Of feeders station | 68 PCS |
No. Of head | 68 PCS |
X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
Feeding way | Electric feeder with double motor |
Our advantages:
1.We equipped with a strong professional R&D team with 15 years of experience dedicated to the design and manufacture of machines, with its own core technology. The company has more than 300 employees and has its own smart industrial park.
2.The software of the machine is independently developed, and some hardware of the machine is made by well-known brands at home and abroad.
3.Our products are exported to more than 20 foreign countries and regions, and are well received by many foreign customers.
4.In India and Egypt, there are offices and engineers to provide customers with free training and on-site installation services.
HT-T9 pick and place machine Application:
HT-T9 SMT pick and place machine apply to 5 meter , 10 meter,25meter,50 meters,100 meter and any length of flexible strip light.HT-T9 achieving any length PCB uninterrupted pasted on. High precision.
Company profile:
1, 50000 square meters industrial park ensure the brand effect and present company strength.
2, Own manufacturing center, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes make our machines has high quality standard and strong supply capacity.
3, Advanced in technology and innovation. Has 9 invention patents, 12 software copyrights and 112 practical patents.
4, The biggest manufacturer for LED SMT machines in China, which has occurred 85% market in China and has exported our machines to India, Vietnam, Korea, Japan, Turkey, Tunisia, Egypt etc more than 20 countries.
5, Has own professional R&D team, has Indian engineer, Indian office, Turkey engineer, Egypt engineer, etc. Can provide support promptly
6, More than 15 years LED lighting field experiences sharing, provide the most suitable SMT program to every client.
Services:
1.Maintenance period 1 year;
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
2.Software and hardware lifetime maintenance:
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
3.Visit customers regularly and gather information:
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
4.Provide the latest information about technology and equipment:
We give professional technology suggestions to our clients. And share the updated news with our clients.
Machine packaging:
1: All machines delivery to abroad will use Foam wrap, to Protect the machine from collision
2: The second layer will be wrapped with stretch film to prevent the equipment from getting wet
3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation
4: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture
5: Finally, each exported machine will be equipped with sturdy export-free wooden boxes
FAQ:
1.What’s the term of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.How to ensure the quality of the machine?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality. Before shipping, we will test the machine again to make sure the quality of the machine is good.
3.Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
4.Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
