Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
|---|---|---|---|
| Application: | SMD Production Line,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
| Weight: | 1700KG | Mounting Speed: | 250000 CPH |
| Dimension: | 3100*2300*1550MM | Feeders: | 68PCS |
| Pcb Thickness: | 0.5-1.5MM |

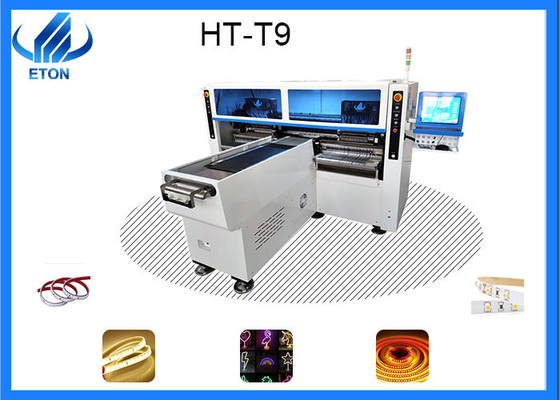

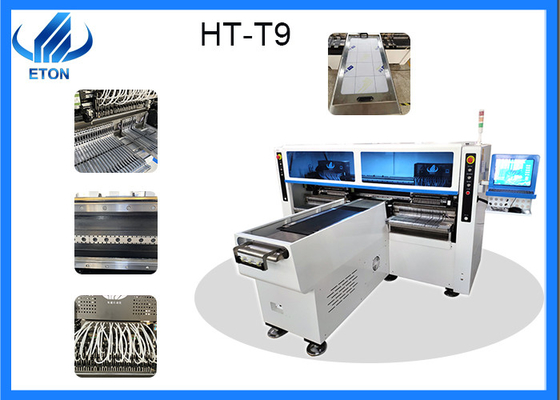

Roll to roll flexible strip smt picking and place machine
Features
Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
Patent
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Parameter
Dimension:3100*2300*1550mm
Total Weight:1700 kg
PCB Length Width:250*any length
PCB Thickness:0.5-1.5mm
PCB Clamping:Vacuum adsorption, cylinder splint, adjustable track width
Mounting Mode:Group picking and separately placing
Mounting speed: 200000~250000 CPH
Repeat mounting Precision:±0.02mm (Repeat precision)
Mounting Height:≦5mm

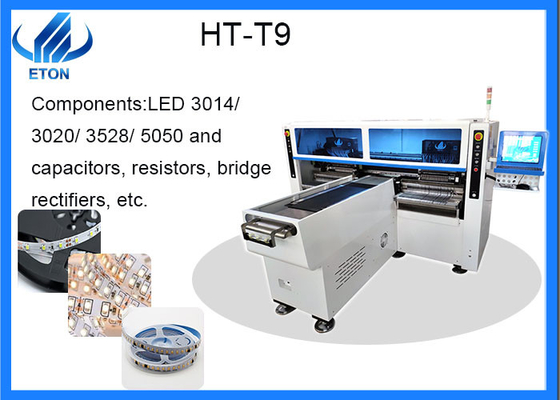

Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Space:0.5mm
No. of Feeders Station:68pcs
No. of head:68pcs
Power:380AC 50 HZ
Power Consumption:6kw
About flexible strip
A soft strip is a special process for soldering a light onto a copper wire or ribbon-shaped flexible circuit board, and then connecting it to a power source to emit light.
Features and advantages
1.hard, like a walkie-talkie can curl.
2.It can be sheared and ducted.
3.the light bulb and access is completely covered in flexible plastic, insulation, waterproof function is good, use insurance.
4.Weather resistant.
5.not easy to break, long service life.
6.easy to create graphics, text and other modeling; The present has been extensively used to decorate and illuminate buildings, bridges, paths, gardens, courtyards, strata, false ceilings, furniture, buses, lakes, underwater, posters, pink signs, signs, etc.
FAQ
Q:Can you support whole SMT line?
A:Yes, we can provide whole line solution if you want. We are very professional on SMT field.
Q:What is your machines quality?
A:We have our own industrial park. There are production centre and R&D centre and quality inspectior centre to guarantee the machines quality.
Q:How many hours does the machine can operate per day?
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q: Is the machines easy to operate?
A: Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company,so we know how to make it intelligent and operate friendly.
