Product Details:
Payment & Shipping Terms:
|
| MODEL: | HT-E8S-1200 | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Components: | 0402 | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
| Application: | SMD Production Line,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | New,100% Original,Brand-new | Weight: | 1700KG |
| Mounting Speed: | 45000 CPH | Usage: | SMT Mounting Machine,SMD,LED |
| Dimension: | 2550*1650*1550mm | Feeders: | 28 |
| Pcb Thickness: | 0.5-5 Mm | HEAD: | 12PCS |

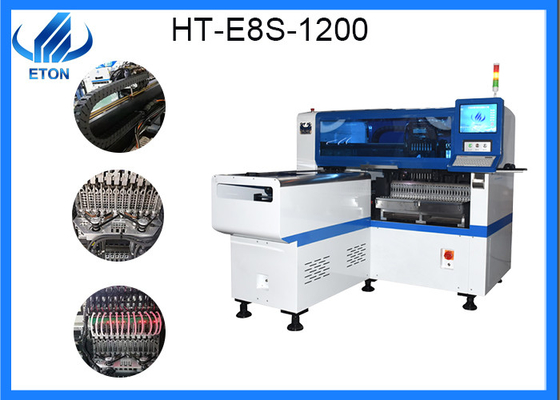

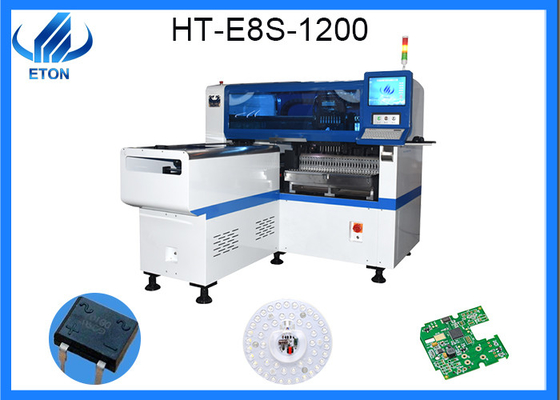

SMT mounting machine for kinds of application,DOB bulb,lens,power driver etc.
Exclusive patented technology
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
Features
Single module magnetic linear motor multifunctional pick and place machine
Component: Min. size 0402 Max. height 15mm
Application: Power driver. electric board. lens. linear bulb.DOB, household appliance etc.
Technical parameter
Dimension:2550*1650*1550mm
Total Weight:1700kg
PCB Length Width:Max:1200*500mm Min:100*100mm
PCB Thickness:0.5-5mm
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
Software:R&D independently
Mounting Precision:±0.04mm
Mounting Height:<15mm (Automatic Changing)
Mounting Speed:45000 CPH
Components:LED,capacitors,resistors,IC,shaped components, etc.
Transmission Direction:Both direction (option)
DOB bulb
The bulb lamp is a new energy-saving lamp which replaces the traditional incandescent bulb.
Core parts
Driving power supply, without this drive, the beads will not light. And if for the quality of a bulb, the most important is the radiator, and drive power and led chips.
Product features
1.Convenience
2.safety: LED as a light source, with professional cooling structure, working temperature is very low (40-60 ° C) , even if the hand will not burn.
3.energy-saving: energy-saving Lamp Power 5W-65W range
4.environmental protection: the use of LED as a light source, led work completely without IR (infrared) and UV (ultraviolet) radiation
5.response time is short:the bubble will not change with the environmental temperature, its normal operating temperature in -35 ° C-80 ° C, so it does not need to consider the general working environment temperature. 5.Long Life: Bulb LED light source life of 50000 hours.
FAQ
Q:Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
Q:Do you have any customers in India? How many machines are there in India?
A: Yes, We have many big clients in India, Such as RK. SURYA, Fiem, Calcom, POLYCRB, etc. We have
sold over a hundred machines to India and we go to the exhibition every year.
