Features

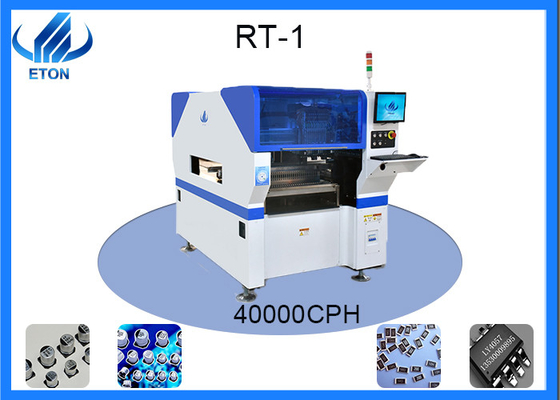

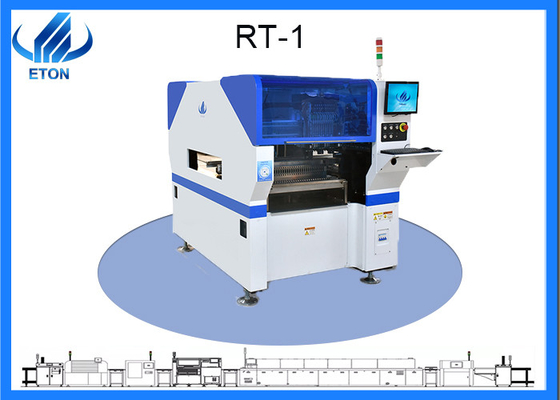

Single-module Magnetic linear motor multifunctional pick and place machine.

Mountingcomponents: LED/capacitors/resistors/IC/shaped components/etc.

Electronic feeder feeding system.

Vision alignment flight identifications, Mark correction.

Auto-optimization after coordinates generated, etc.

Specification:

Dimension:1200*1930*1500mm

Total Weight:2000kg

PCB Length Width:Max:450*350mm Min:80*80mm

PCB Thickness:0.1-6mm

PCB Clamping:Pneumatic

Mounting Mode:Group picking and separate placingseparate picking and separate placing

No. of Camera:2 PCS

Mounting Precision:±0.04mm

Mounting Height:≦15mm

Mounting Speed:40000 CPH

Components:LED,capacitors,resistors,shapedcomponents, etc.

Power Consumption:4kw

No. of Feeders Station:32pcs

No. of nozzles:10pcs

Transmission Speed:＞1000mm/sec

Production line

Significance

1,electronic products pursue miniaturization, previously used perforated plug-in components have been unable to shrink

2,electronic products more complete function, the use of integrated circuits (IC) has no perforated components, in particular, large-scale, high-integration IC, have to use surface mount components.

3,Mass production, automation, low-cost, high-volume, high-quality products to meet customer needs and enhance market competitiveness.

4,the development of electronic component, the development of integrated circuits (IC) .

5,the List of semiconductor materials technology revolution is imperative

About electric board:

1.The name of the circuit board has: ceramic circuit board, alumina ceramic circuit board, aluminum nitride ceramic circuit board, circuit board, PCB board, aluminum substrate, high frequency board, thick copper plate, impedance board, PCB, ultra-thin circuit board, ultra-thin circuit board, printing (copper etching technology) circuit board, etc. . The utility model has the advantages of high wiring density, light weight, thin thickness and good bending property.

2.Circuit boards are divided into single-panel, double-panel, and multi-panel boards by the number of layers

(1)Single-panel, on the most basic PCB, the parts are concentrated on one side and the wires are concentrated on the other side. Because the wire only appears on one side, it is called a single-sided PCB

(2)Double-panel is the extension of single-panel, when the single-layer wiring can not meet the needs of electronic products, the use of double-panel

(3) A multilayer board is a printed board with three or more conductive graphics layers and insulating materials laminated separately, and the conductive graphics interconnect according to the requirements.
