Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 2550mm | Width: | 1650mm |
| Height: | 1500mm | Total Weight: | 1700kg |

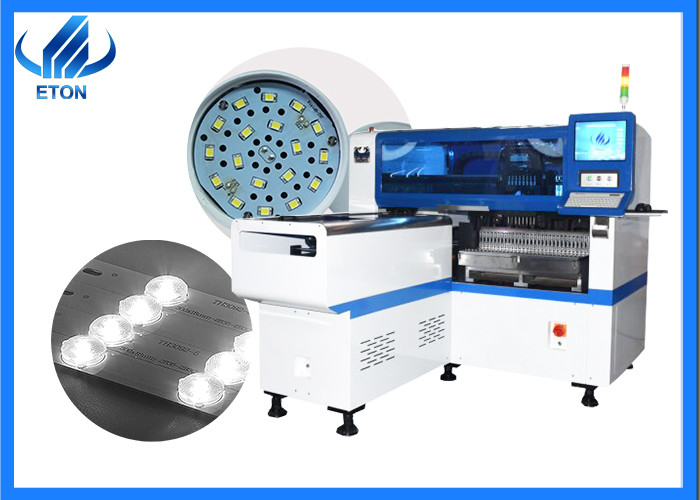

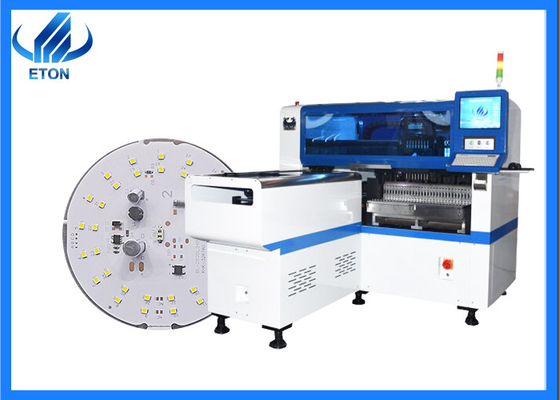

SMT pick and place machine with multifunction apply to LED lights
Product description
It is suitable for all LED lights, whether it is DOB bulbs, tube light strips, floodlights, downlights, and can also be mounted on drivers or displays.
The smallest component is 0402, and the highest component is 15mm, which supports customization.
It is perfectly suitable for driving boards for various home appliance control applications, and can paste capacitors, resistors, ICs, bridge stacks, and special-shaped components, etc.
Feature
Non-stop refill function
Electronic feeder feeding system
High precision identification
Parameter
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Mounting Precision | ±0.04mm |
| Mounting Speed | 45000 CPH |
| Components Space | 0.2mm |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
Method of maintaining SMT Mounter electromagnetic valve
1. During manual operation, first confirm the safety.
2.Regularly discharge the condensed water accumulated in the air filter.
3. Reduce the use of electromagnetic valves. Check the operation of electromagnetic valves switch once a month to avoid failure.
4. When disassembling the mounter, please have the necessary equipment to prevent the driven object from falling and unable to operate normally. After this process, please cut off the air source and power supply and pay attention to the residual air pressure.
5. The maintenance process of the mounter shall be carried out in the order of the operation as far as possible.
About us
Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.
FAQ
Q1: Why should I choose to buy from you instead of from other suppliers?
A:Choosing us has the advantages of products, R & D and technical consultants. We will try our best to help you solve your problems.
Q2: How do you guarantee product quality?
A:We have special departments for the purchase of parts and the control of product quality. Of course, your technical consultant will follow up in the whole process of production to ensure product quality.
Q3:What services will you provide when buying your products?
A:Free lifetime software upgrade, free training for your employees until they can master the machine, free replacement of parts during the warranty period, etc
