Product Details:
Payment & Shipping Terms:
|
| MODEL: | YT202 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Applicable Components: | 0201-10mm Package And IC Etc. | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
| Application: | SMD Production Line,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | New,100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter,SMT Shooter Machine |
| Weight: | 1700KG | Mounting Speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD | Dimension: | 2317*1376*1762mm |
| Feeders: | 32pcs | Pcb Thickness: | 0.5-4.5mm |
| HEAD: | 20PCS |

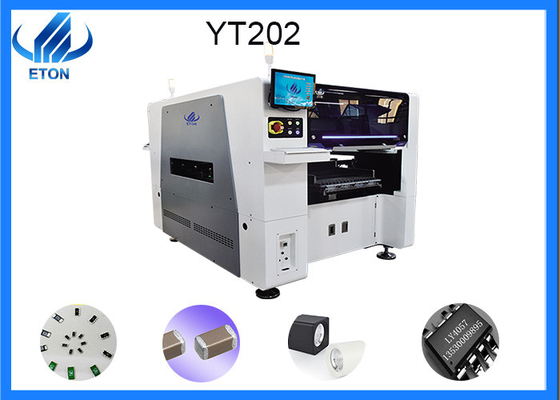

pick and place machine with higher precision and mounting for down light
Main parameter
Model:YT202

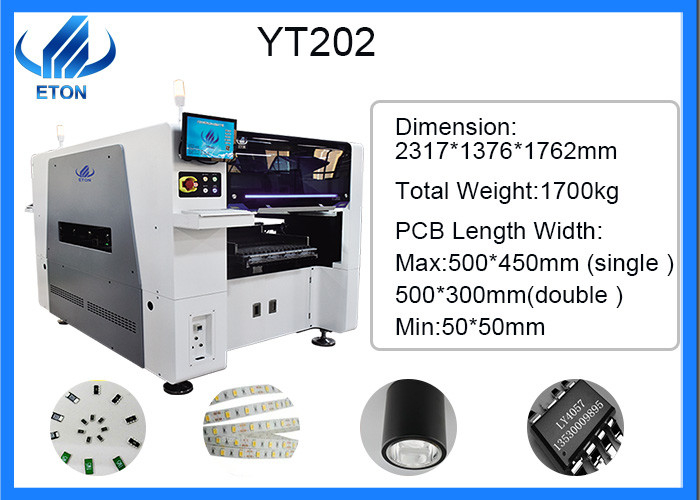

Dimension:2317*1376*1762mm
Total Weight:1700kg
PCB Length Width:
Max:500*450mm (single PCB)/500*300mm(double PCB )
Min:50*50mm
PCB Thickness:0.5-4.5mm
No. of Camera:4pcs
Mounting Precision:±0.02mm
Mounting Height:<20mm (Automatic Changing)

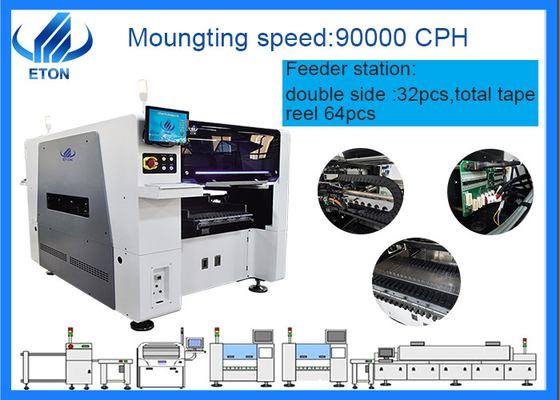

Mounting Speed:90000 CPH
Components:0201-10mm package and IC etc.
Power:380AC 50hz 6kw
No. of Feeders Station:double side:32pcs,total tape reel packages 64pcs
No. of nozzles:20pcs(double side)
Main part
Camera
Components with size less than 10mm high-speed and high-precision identification.
Mark recognition:High-precision Mark recognition system,adopt 3-color illumination recognition,apply to any shape Mark and LENS(Blu-ray scan), wider range of applications.
Fixed high pixel flight vision camera:High-speed flight
vision camera, quickly captures multiple head images at once,perform visual calibration of image position,alignment correction,adjustable light source brightness.
Intelligent Electric Feeder
Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.it can achieve stable,accurate and high-speed feeding.
Characteristic
1.Transmission system structure
Two gantry, 10 spindles*2 Gantry, total 20 spindles.
Flexible PCB handling capabilities,double rail, both gantry can mount the same large PCB at the same time,realizing flexible production.
Flexible wiring through modular placement heads and various production modes.
2.High-speed Multi Modular Head
Adopt High-speed multi modular head,apply to ultra small chip 0201~10mm large Chip, wider component range.
3.Brand New Flight Vision Camera
Improve recognition performance, size up to 10mm*10mm.
4.Modular Head
Each module 10 spindles, both high-speed and intelligent with light compact design.
Eton company service
Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
After order :
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
