Product Details:
Payment & Shipping Terms:
|
| MODEL: | HT-E8D-1200 | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Components: | LEDchips/capacitors/resistors/IC/ | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
| Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | 100% Original | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,SMT Shooter Machine |
| Weight: | 2500KG | Mounting Speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD | Dimension: | 3150*2250*1650mm |
| Feeders: | 48pcs | Pcb Thickness: | 0.5-5MM |
| Head: | 24pcs |

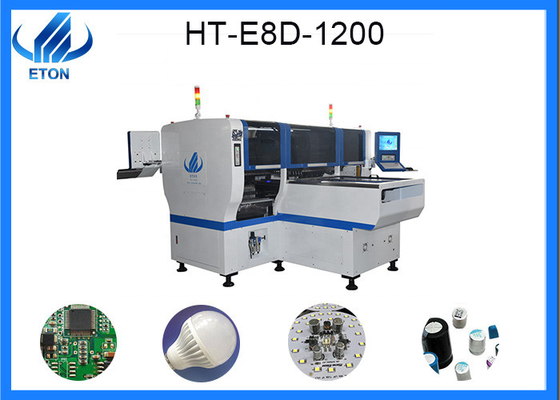

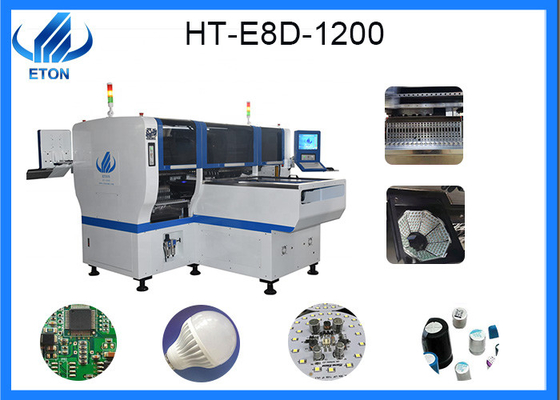

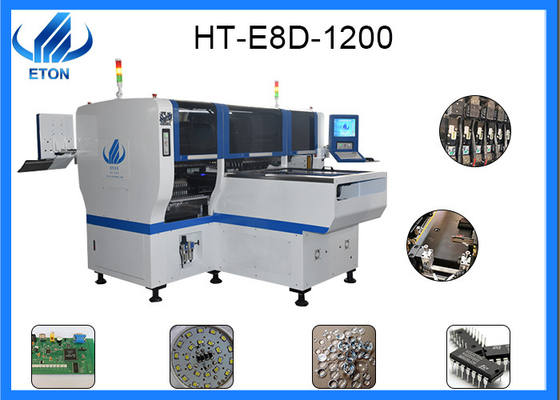

mounting machine apply to power driver,electric board ,lens,dob bulb,linear bulb,household appliance
Features
Dual system, dual module multifunctional mounter. To produce two different products at same time.
Mountingcomponents:LEDchips/capacitors/resistors/IC/
shaped components/etc.
Component: Min. size 0402 Max. height 15mm
Application: Power driver. electric board. lens. linear bulb.DOB, household appliance etc.
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
Technical parameter
Model:E8D-1200
Dimension:3150*2250*1650mm
Total Weight:2500kg
PCB Length Width:Max:1200*300mm Min:100*100mm
PCB Thickness:0.5-5mm
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
No. of Camera:4pcs
Mounting Precision:±0.04mm
Mounting Height:<15mm (Automatic Changing)
Mounting Speed:90000 CPH
Components:LED , capacitors, resistors, IC,shaped components, etc.
Components Space:0.2mm
No. of Feeders Station:48pcs
No. of nozzles:24pcs
Power:380AC 50HZ
Power Consumption:8 KW
Conveyor transmission:Max length :1200 mm
Transmission Speed:＞1000mm/sec
Service
1. Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.Software and hardware lifetime maintenance
2.Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
3. Visit customers regularly and gather information
4.Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
Related machine
1.Conveyor function
For connections between SMT production lines, PCB buffering, inspection, testing, or electronic component.
2.The connecting platform generally comprises a frame
two parallel rotating conveyor belts arranged on the frame, a circuit board arranged on two conveyor belts for conveying, and an existing conveyor belt generally fixed on the frame, the width of the circuit board conveyed on the two conveyor belts is limited, which is disadvantageous to the transportation of the circuit board with different sizes, thus making the applicability of the connecting platform low.
FAQ
Q:which kind of raw material should i prepared for SMT line?
A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
Q:Can i visit the production site of your machines in India?
A:i have to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.
