Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-F7S |
|---|---|---|---|
| Feeders Station: | 68PCS | Heads: | 34PCS |
| PCB Size: | Max: 1200*330mm Min: 100*100mm | PCB Clamping: | Adjustable Pressure Pneumatic |
| Mounting Mode: | Group Picking And Group Placing | ||
| High Light: | Group Picking led strip making machine,18W CPH led strip making machine,1.2m Strip SMT mounting machine |
||

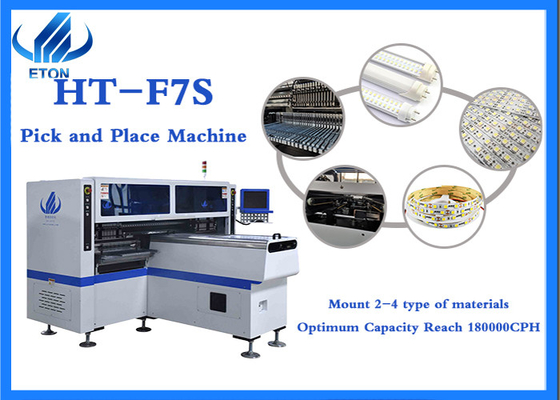

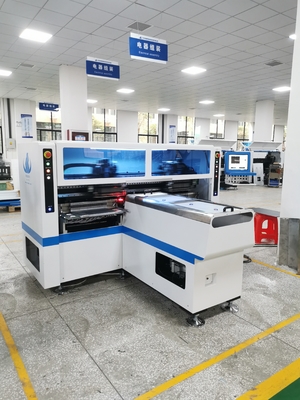

led strip making machine 1.2M led strip with 18W CPH SMT mounting machine
The technical parameter of 1.2M led strip making machine
| Total weight: | 1700kg |
| Dimension | 2700*2300*1550mm |
| PCB length width | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| No. Of camera | 5 sets of digital camera |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Power consumption | 6kw |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
| No. Of feeders station | 68 PCS |
| No. Of head | 34PCS |
| Feeding way | Electric feeder with double motor |
The advantages of 1.2M led strip making machine
produce two to four different types of materials at the same time,
Each mounting head has 17 nozzles,Total 34 heads
Every mounting head can be mounted separately or synchronously.
mounting speed 180000 chips per hour.
group to pick and group to mount
HT-F7S apply to 0.6M, 0.9M, 1.2M rigid PCB and 0.5M, 1M LED flexible strip, LED tube, panel light etc.
Applications and components of HT-F7S led strip making machine
Applications: 0.6 M, 0.9 M, 1.2M rigid PCB and 0.5M ,1 M LED flexible strip and apply to board with any proportion of LED chip and resistor. In addition, HT- F7S is also available for LED display, LED tube and other Linear products.
Components:LED chip 3014/3020/3528/5050/5730/5630, capacitor,resistors,bridge rectifiers etc.
The Semi-automatic SMT production line of 1.2M led strip making machine
The Semi-automatic SMT production line of 1.2M led strip making machine includes semi automatic stencil printer, conveyor, reflow oven.
Market and Customer
In China, 90% of LED manufacturers are our customers, all over China; In foreign countries, our products are exported to more than 30countries & regions Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
ETON as a famous manufacturer, has helped many factory to set up LED light SMT production line, we also provide complete service, and provide free installation, training and debug.
Customer: RK, UNISTAR, FIEM, POLYCAB, SURYA, CALCOM, KONKA AND SO ON.
Exhibitions
ETON has been actively participating in various exhibitions at home and abroad since its establishment.
Package and delivery
Step 1: pack the machine with foam cotton and stretch film to protect the outside of the machine
Step 2: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;
Step 3: professional wooden box packaging.
