Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2788*1686*1375mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max Size:500*450mm(single PCB) 500*300mm(double PCB) Min Size:50*50mm | PCB Thickness: | 0.5-4.5mm |
| Mounting Height: | ≤20mm | Mounting Precision: | ±0.02mm |
| No.of Camera: | 4 PCS | Components: | 0201~40*40mm Tape Reel Packages And IC Tray Feeder Etc. |
| Mounting Speed: | 80000CPH | No. Of Feeders Station: | Double Side:32PCS Single Side:16PCS |
| No. Of Head: | Double Side：20pcs(single Side:10pcs) | Feeding Way: | Intelligent Double Head Feeder |
| High Light: | Multifunctional Pick And Place Machine CE,32 Heads Pick And Place Machine,dual module placement machine |
||
New Honor Series Multifunctional Pick And Place Machine 32 Heads 80000CPH
Machine description:
1.YT 202S is one of the newly launched YT series products from ETON. The dual-module placement machine can produce two identical PCB boards at the same time, improving production efficiency.
2.Under optimal conditions, the production capacity can reach 80000CPH, and the precision is very high, and the minimum mounted components can reach 0201.

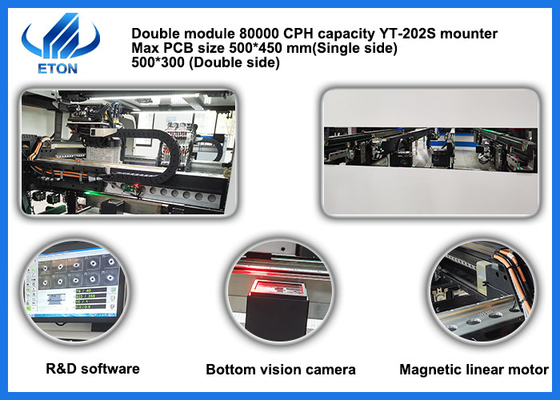

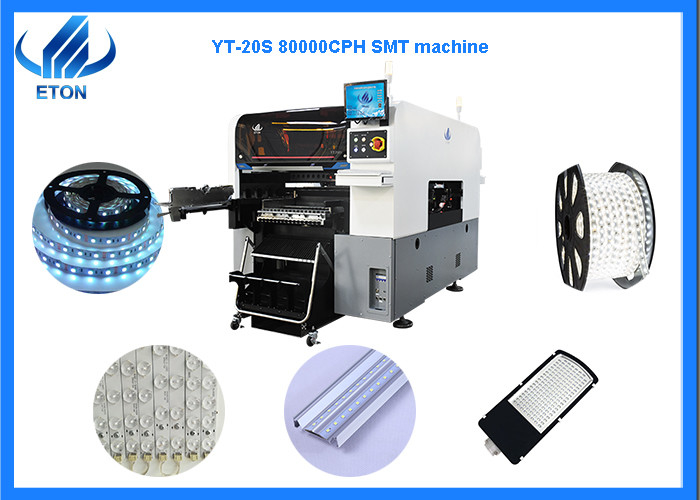

Machine Picture:
Machine Feature:
1.Machine head:
(1).This machine adopted High-speed multi modular head(NON replace modular head),apply to ultra small chip 0201~40*40mm large chip,wider component range.
(2).It equipped with 20 heads, Each placement head with independent detection function,which improves the stability of the equipment and the reliability of the product.
(3).Adopt High-end magnetic linear motor,servo system and multi function modular head, the optimum placement speed reach 80000 CPH.
Machine main parameter:
| Model | YT202S |
| Dimension(L*W*H) | 2788*1686*1375mm |
| Weight | 1700kg |
| PCB length width |
Max size:500*450mm(single PCB) 500*300mm(double PCB) Min size:50*50mm |
| PCB thickness | 0.5~4.5mm |
| Mounting height | ≤20mm |
| Mounting precision | ±0.02mm |
| No.of camera | 4 PCS |
| Bottom vision camera recognition | |
| Vision alignment, Mark correction | |
| Components | 0201~40*40mm Tape reel packages and IC tray feeder etc. |
| Optimum mounting speed | 80000CPH |
| No. Of feeders station |
Double side docking cart slot:32PCS ,Tape reel packages:64pcs (Single side docking cart slot:16PCS ,Tape reel packages:32pcs)
|
| No. Of head | Double side:20pcs(single side:10pcs) |
| X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
| Feeding way | Intelligent Double head Feeder |
Company Introduction
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
4. Good and professional service. Provide engineer Door-to-door service, support video online training, video training.

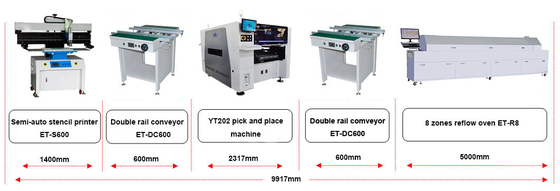

share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Package of our machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Services:
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt.Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ:
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement !
Q: What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
