Product Details:
Payment & Shipping Terms:
|
| Name: | ET-46BLD | Dimension: | L600*W650*H1200 Mm |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Air Requirement: | 0.4-0.6 Mpa;Max 30L/min | Board Thickness: | Min 0.6mm |
| High Light: | 220V AC SMT Line Equipment,Stepper motor SMT line equipment,Stacking Loader SMT Mounting Machine |
||

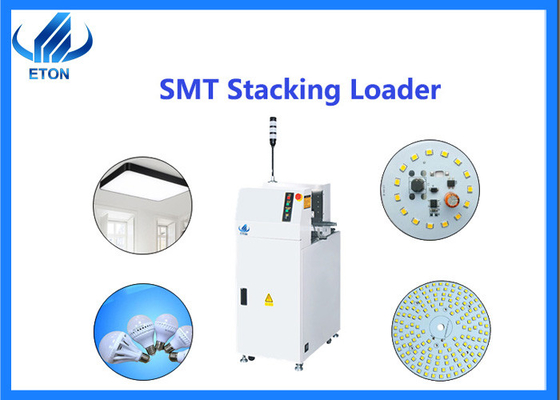

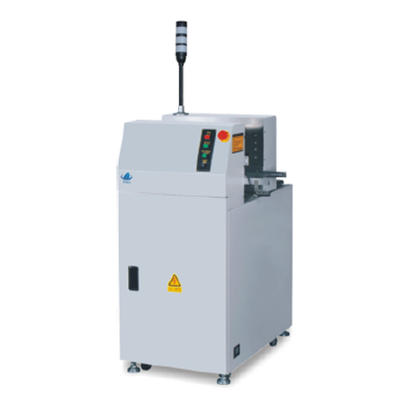

SMT line equipment Stacking loader with stable mechanical design for single-sided PCB board
Features:
Suitable for pcb in smt production line
Steel structure, strong and stable mechanical design
Stepper motor control, nonstop sent board function
7 mm flat belt for conveyor belt
Moving parts use air cylinder and solenoid valve
Mitsubishi programmable control card, three sensors
Real-time fault monitoring
Standard SMEMA
Specification:
| Model | ET-46BLD |
| Dimension | L600*W650*H1200 mm |
| Board Size | 50*50-530*460 mm |
| Board loading | Approx 10 sec |
| Process height | 900 ± 20 mm |
| Flow direction | L→R or R→L |
| Board thickness | Min 0.6mm |
| Step distance | 20 mm or Customized |
| Board capacity | Customized |
| Weight | 150kg |
| Power requirement | 220AC 50HZ |
| Air requirement | 0.4-0.6 Mpa;Max 30L/min |
Packaging
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Service
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
FAQ
Q: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
Q: Do our machines only for LED lights?
A: No,our machines apply to not only LED light but also other products. Such as power driver, electric board, display, etc.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian engineer and Egyptian engineer , etc.
