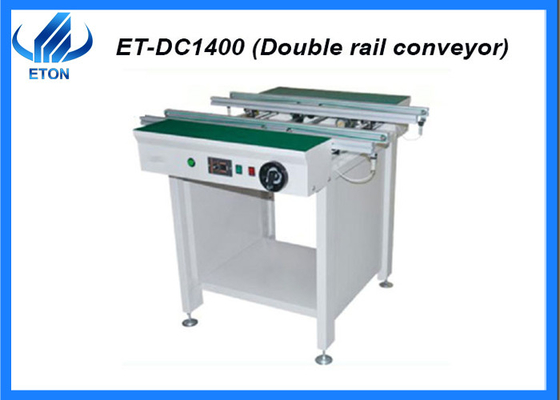

High efficiency Smt Production Line automatic 1.4m double rail Conveyor Machine
Machine features:
1.Standard with one key transfer direction, flexible and convenient
2.Ergonomic design, so that the arm is not easy to fatigue
3.The track has aload-bearing wheel, suitable for large veneer
4.The use of smooth parallel width adjustment, optional automatic width adjustment
5.Easy to replace the belt design; Standard SMEMA socket
6.Application: This equipment is used to transfer the circuit board in the production line
Machine Technical parameter:
| Model | ET-DC1400 |
| Steel frame structure, rail length | L=1400 mm |
| Width adjustment range | 50～300 mm |
| Max PCB size | 1400*300 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left → right or right → left) |
| One section of control, 4 Sensors | |
| Set of electric control box | |
Application:
Applicable to production line of SMT and AI, facilitate to connection of equipments before and after. When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.
Machine main part:
1. The button for manually adjust the width.
2. The button for speed control.
3. The button for insurance.
4. The button of detect.
5. The button of power switch.
Exhibition:
ETON has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Services:
1.Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
2.Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
3.Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
4.Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
5.On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ:
1.What can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine etc.
2.Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
3.Can you support whole SMT line?
Yes, we can provide whole line solution if you want. We are very professional on SMT field.
