Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pick And Place Machine | Dimension: | 2700*2300*1550mm |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | Pcb Clamping: | Adjustable Pressure Pneumatic |
| Max Pcb Size: | 1200*330mm | No. Of Heads: | 34pcs |
| No. Of Feeder Station: | 68pcs | Optimal Speed: | 180000cph |
| High Light: | 18W CPH SMT Chip Mounter,1.2m Tube SMT Chip Mounter,LED Tubes pick and place equipment |
||

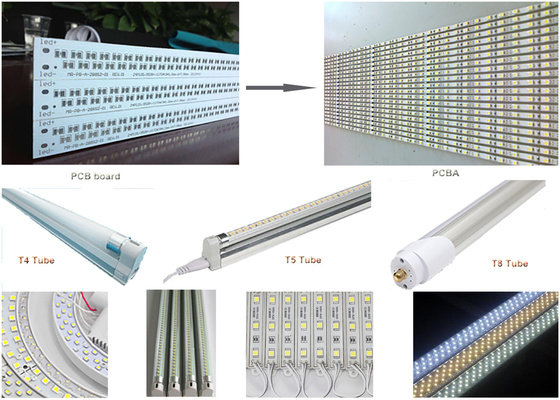

ETON 180000CPH chip mounter 1.2m led tube pick and place machine

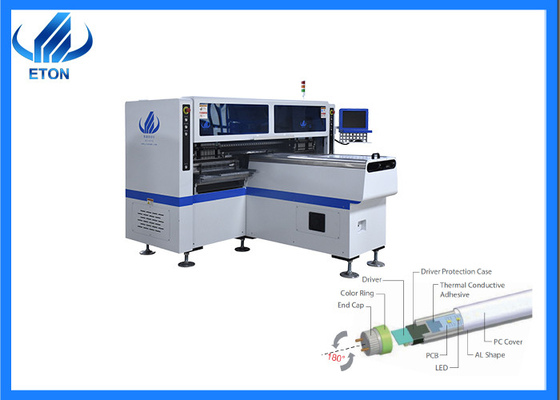

About HT-F7S pick and place machine
HT-F7S is a dual-arm professional high-speed mounter,, each mounting modules with 17pcs heads, totally has 34pcs heads; 2-4 type of materials capacity reach 180000cph. Available for RGB, part A or part B can be mounter separately or synchronously.
Main Features
1. Control System: High-end magnetic linear motor and servo motor control the XYZ axis movement
2. Vision system: 5 sets digital camera. 2 sets nozzle adjustable cameras, 2 sets feeder adjustable cameras and 1 set mark camera
3. 34 placement heads can pick up and calibrate components at one time.
4. 68 feeder station for 8mm feeder
5. Video tutorials and engineer factory training , which make you operate machine easily
7. Free to upgrade software.
Pick and place machine parameter
| Model | HT-F7S |
| Dimension | 2700*2300*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max: 1200*330mm Min: 100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting speed | 150000-180000 CPH |
| No. of feeders station | 68 PCS |
| No. of head | 34PCS |
ETON market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
And here are some of our big customers:SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Seriveces
FAQ
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: What kind of machine will provide besides pick and place machine ?

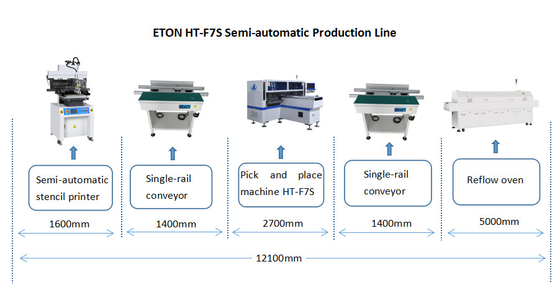

A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
