Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 2550mm | Width: | 1650mm |
| Height: | 1550mm | Total Weight: | 1700kg |
| High Light: | SMT 4KW pick and place machine,single module Pick Place Machine,LED tube Pick Place Machine |
||

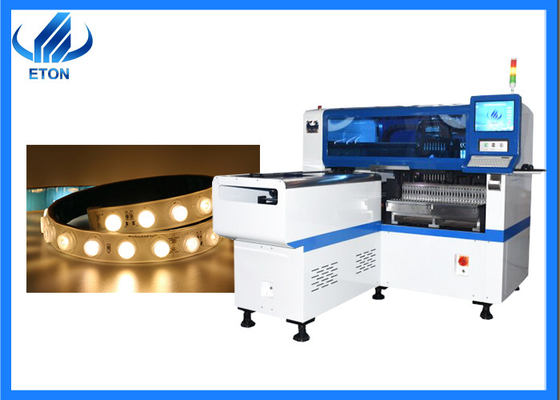

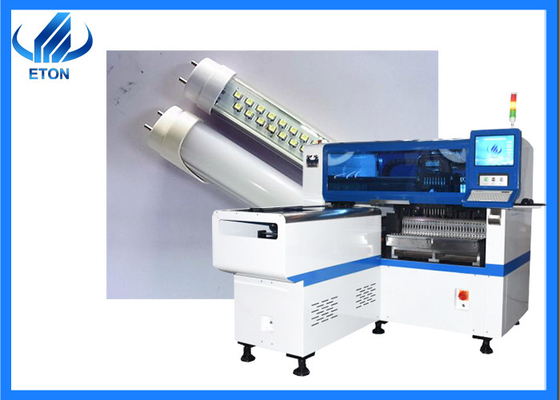

SMT pick and place machine apply to LED lens LED strip LED tube
Product Description
Its PCB board size is 1200*500mm, which is very large and can adapt to the length and width of all LED light PCB boards. If you want to produce longer products, such as 1.5m lamps, etc., we also support Customized.
This technology is very mature.
In addition, it is a single-module multi-function SMT pick and place machine with only one system and one head, but there are 12 suction nozzles in the head and 28 in the feeder, which can transport a variety of raw materials.
It adopts dual-motor intelligent feeder for feeding, which is more stable and more accurate than pneumatic feeder.
Parameter
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Service
Maintenance period 1 year
●One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
●Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
●Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local
clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
●We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
●We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service
timely with our engineers.
●According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to
operate the machine.
About us
Since its establishment in 2011, ETON has become one of the leaders in the global photoelectric high-speed Mounter after nearly ten years of development. The high-speed machine developed by ETON has changed the market price of LED lamps, obtained various certificates and applied for more than 100 invention patents.
FAQ
Q1: How to train our employees after buying the machine?
A:First of all, we have service points in some countries. If the customer's company is located in these countries, we can provide on-site training and installation. If not, please don't worry. We will help your employees master the machine through online training, or if circumstances permit, we can send employees to your factory for training.
Q2:Is your machine difficult to master?
A:No, it's not difficult at all. Take our previous customers for example. They can learn it in five days at most.
