Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 3454mm | Width: | 3035mm |
| Height: | 1777mm | Total Weight: | 3100kg |
| High Light: | Strip SMT pick and place equipment,Strip pick and place equipment,Modular Head SMT mounting machine |
||

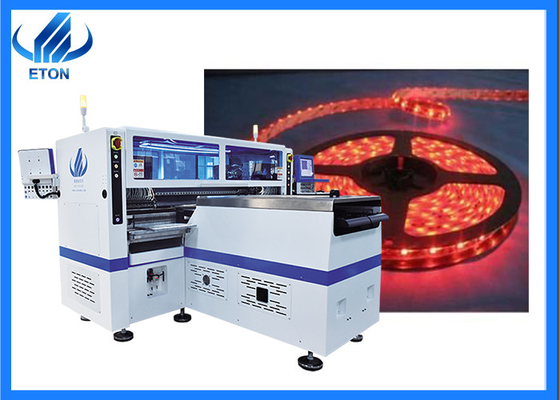

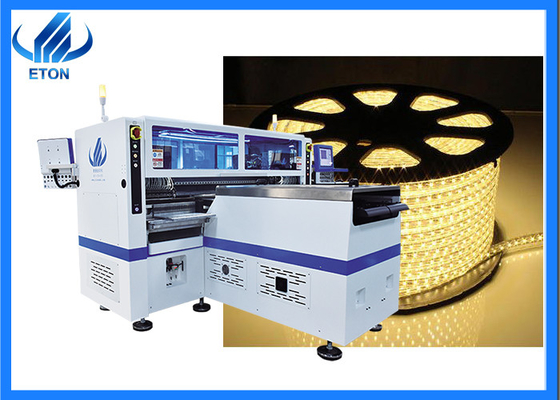

SMT mounting machine apply to LED strip
Product Description
| High-speed Modular Head |
| ETON Tech Adjustable Placement Head |
| Apply to 3014/3020/2835/5050 resistor, capacitor,bridge rectifier etc. |
| Unique Design Component Leaking Detection And Individual Component Refill Function |
| The placement head adopt the method of two times picking and once placing. |
| The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH. |
| Adjust the conveying platform according to various roll to roll strip,range 250 ± 10mm,the max length range is 1M per cycle. |
| The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing. |
Parameter
| PCB size( Width*Length) | 250(± 10)mm*Any length |
| PCB thickness | 0.1 -0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting mode | Double rail + Four groups of placement heads |
| Production management MES system | Customized(Option) |
| Repeat precision | ±0.05mm |
| Power consumption | 9.6KW |
| Operating environment | 23°C±3°C |
Feeding system
Support intelligent feeder, one placement and two reclaiming function, which improves placement time.
Can produce four materials at the same time without affecting high productivity
Package
We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.
Maintenance instructions for semi-automatic printer
Daily maintenance:
Check whether the sensor works normally
Check whether the scraper is installed and leveled correctly
Check whether the operation keys are normal
Weekly maintenance:
Clean and lubricate the bearings of each department
Monthly maintenance:
Clean the drive case
Check the tightening of screws at all parts
Check whether there is electric leakage in the electrical part
FAQ
Q1” Will your product be safe to use?
A: Of course, we have imported limit sensors. If someone gets too close, they will stop working to ensure human safety.
Q2:What value services can I get after I buy the machine?
A:We will follow up all processes, help you clear customs and do our best to ensure your interests. At the same time, after your production is on the right track, we will also visit regularly to share your latest industry information.
Q3: What is the minimum mounting accuracy of your product?
A:Our products can be divided into multi-function machines and special machines. The smallest components that can be attached to each machine are different. If you want to know more, you can contact me through the contact information at the bottom. I will provide you with more information about SMT Mounter.
