Product Details:
Payment & Shipping Terms:
|
| Model: | YT202 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Applicable Components: | 0201-10mm Package And IC Etc. | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter |
| Application: | SMD Production Line,SMT Production Line,for SMT Machine | Power Supply: | 380V 50HZ |
| Condition: | 100% Original,Brand-new | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter |
| Weight: | 1700KG | Mounting Speed: | 90000 CPH |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD | Dimension: | 2317*1376*1762mm |
| High Light: | 0201 SMT Chip Mounter,LED Light SMT chip mounter,LED Light pick and place equipment |
||

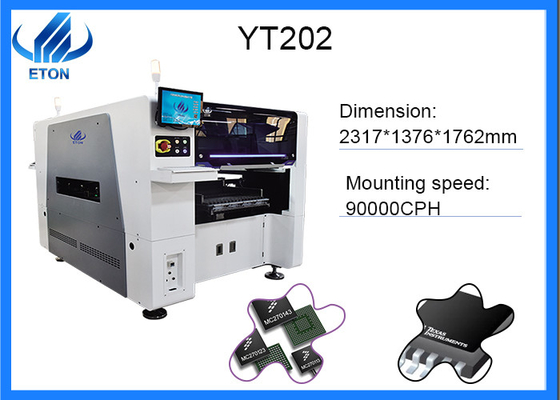

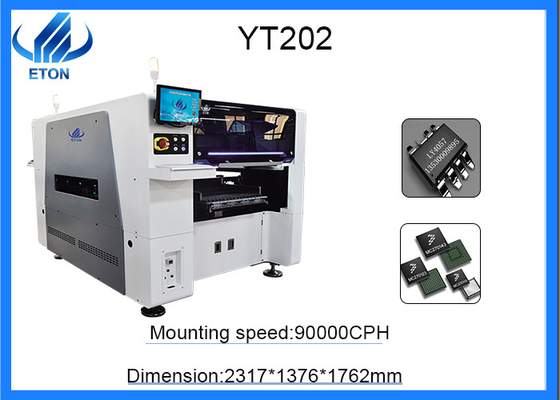

cSMT chip making pick and place machine in led industry for led light,0201-10mm package
Details
Showroom Location:Turkey, India
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Warranty of core components:1 Year
Core Components:R&D by Eton
Place of Origin:Guangdong, China
Brand Name:ETON
Model Number:YT202
Warranty:1 Year, 1 year
Place of origin:China
Dimension:2317*1376*1762mm
Total weight:1700kg
Power:380AC 50HZ
Power consumption:6KW
Mounting speed:90000CPH
Mounting height:<=20mm
Visual camera:4sets of imported camera
After Warranty Service:Video technical support, Online support
Local Service Location:Turkey, India
After-sales Service Provided:Video technical support, Online support
Features
YT 202 is one of the newly launched YT series products from ETON. The dual-module placement machine can produce two identical PC boards at the same time,improving production efficiency.Under optimal conditions, the production capacity
can reach 90000CPH, and the precision is very high, and the minimum mounted components can reach 0201.
1.(1)YT202 machine adopt High-speed multi modular head,Apply to 0201~10mm tape reel package and IC tray feeder.
(2)It equipped with 20 heads, Each placement head with independent detection function, which Optimum mounting speed reached 90,000CPH.
(3)PC max size:500*450mm.
(4)4 sets of camera:Components with size less than 10mm can be used to high-speed and high-precision identification.
2.Application
This machine is suitable for products not only LED lights, but it can also mounting BGA, CP ,Apply to more complex PCBA board.
3.Parts
(1)Software : Machine software is independently developed by our company, which can offer clients free life-long upgrade and update
(2):Smart double-head tape feeder
Support Y series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component,it can achieve stable,accurate and high-speed feeding.
(3):Drag chain
Imported from Germany IGUS
It can provide traction and protection for built-in cables and air pipes. During running,it has low noise, wear resistance, and high-speed movement.
(4): Guide rail
Imported from Japan THK
Support and guide moving parts, reciprocating linear motion in a given direction,used in mechanical structures with high precision requirements.
(5)Mark camera
Hik vision brand from China top one
High quality Mark camera automatically recognizes the Mark points, and the software automatically recognizes and corrects and compensates.
FAQ
Q: Can I visit the production site of your machines in India?
A: I have to ask my clients. After all, this is our customer's factory. We can't make decisions for my clients.
I think that You wouldn't want your competitors to visit your manufacturing site. please understand.
Q:How many hours does the machine can operate per day?
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
