| Model: | HT-T9-2S | Length: | 3454mm |
|---|---|---|---|
| Width: | 3035mm | Height: | 1777mm |
| Total Weight: | 3100kg | PCB Size: | 250(+-)mm*any Length |
| High Light: | light strip pick and place equipment,soft strip pick and place equipment,100m strip SMT production line |
||

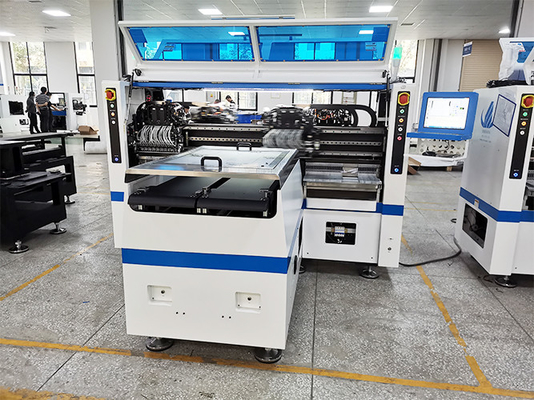

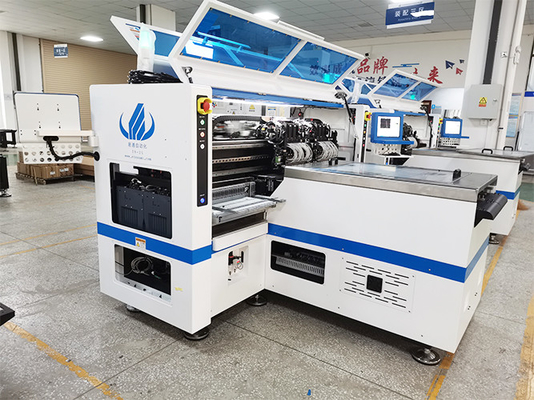

100m soft light strip PCB processing pick and place machine SMT production line
Introduction of T9-2S
1. Make an infinitely long soft light strip. The PCB size is 250 (+ - 10) mm * any length
2. T9-2s is faster than T9. T9 is 250K, and t9-2s is twice as fast as T9. At 500K, the actual production capacity can reach 440000
3. The software independently developed by Eton is used to support lifetime free software updates
4.10 sets of camera identification, using the domestic top brand - Hikvision
5. There are 136 feeders and 136 suction nozzles at both sides of the station, which are stably mounted without waiting for the refueling process
6. The linear motor used in the X and Y axes makes the mounting accuracy higher, the speed faster and the service life longer
Techinical parameter
| 线路板/PCB | |
| PCB板尺寸/PCB size( Width*Length) | 250( ± 10)mm*任意长度/250(± 10)mm*Any length |
| PCB板厚度/PCB thickness | 0.1 -0.5mm |
| PCB板固定方法/PCB clamping |
真空吸附,气缸夹板,轨道宽度可调 Vacuum adsorption, cylinder clamping, track width adjustable |
| 贴片方式/Mounting way | 群取群贴/Group picking and group placing |
| 贴装模式/Mounting mode | 双轨 + 四组贴装头/ Double rail + Four groups of placement heads |
| 操作系统/o.s. | |
| 系统/Sy stem | Windows 7 |
| 软件/Software | 自主研发/ R&D independently |
| 显示器/Display | LED显示器/LED display |
| 生产管理MES系统/Production management MES system | 提供要求定制(选配项)/ Customized(Option) |
| 视觉系统/Vision system | |
| 相机数S/No. of camera | 10套/10 sets (数字相机 Digital camera ) |
| 视觉对位+MARK校正/ Vision alignment+Mark correction | |
| 重复精度/Repeat precision | ±0.05mm |
| 贴片高度/Mounting height | W5mm |
| 贴片速度/Mounting speed |
双边500000CPH,单边250000CPH,单边250000CPH (本公司最优条件下) Double side:500000CPH,single side:250000CPH(Optimum speed) |
| 贴装零件范围/Components range |
带装LED 3014/3020/2835/5050或电阻,电容,桥堆等 LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc. |
| 使用电源/Power | 380AC 50HZ |
| 电源功$/Power consumption | 9.6KW |
| 使用环境/Operating environment | 23°C±3°C |
| 导轨传动/Conveyor transmission | 最大长度:1000mm/MAX Length: 1000mm |
| 传输速度/Transmission speed | > 500mm/秒 / > 500mm/sec |
| 传输方向/Transmission direction | 单向(左一右或右一►左)/Single ( left—>right or right—Heft) |
| 传送方式/Transmission mode | 在线/Online drive |
| 定位方式/Position mode | 光学/Optical |
| 耗气量/Air consumption | 0.4-0.6mpa ( 4-6kgf/cm2) 1 50N/min |
| 电气控制/Electrical control | ETON 自主研^/Independent research and development by ETON |
| 运动控制卡模块2套/Motion control card module 2 set | ETON 自主研发/Independent research and development by ETON |
| XYZ轴驱动方式/X,Y,Z Axis drive way | 高端磁悬浮电机+伺服电机/High-end magnetic linear motor +Servo motor |
| 喂料系统/Feeding System | |
| 可放置送料器数量/No. of Feeder station | 双边站位136PCS (单边站位68PCS ) Double side:136PCS(single side:68PCS) |
| 头部数量/No.of head |
双边 136PCS (单边68PCS ) Double side:136PCS(single side:68PCS) |
| 送料方式/Feeding way | 双马达智能送料器/Intelligent electric feeder with double motor |
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
