Product Details:
Payment & Shipping Terms:
|
| Model: | HT-T9-2S | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter | Weight: | 3100kg |
| Mounting Speed: | 500000 CPH | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD |
| Dimension: | 3454*3035*1777mm | ||
| High Light: | SMT chip pick and place machine,Rolling Strip pick and place machine,Flexible LED Strip SMT Mounting Machine |
||

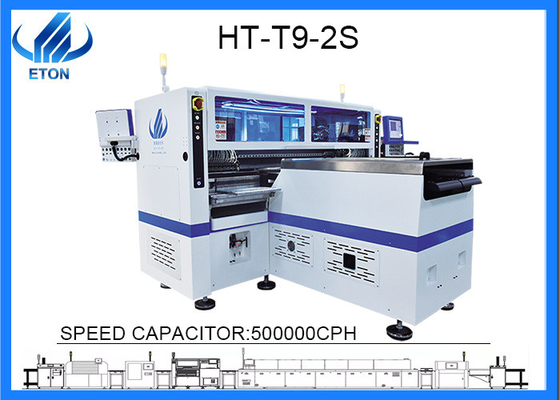

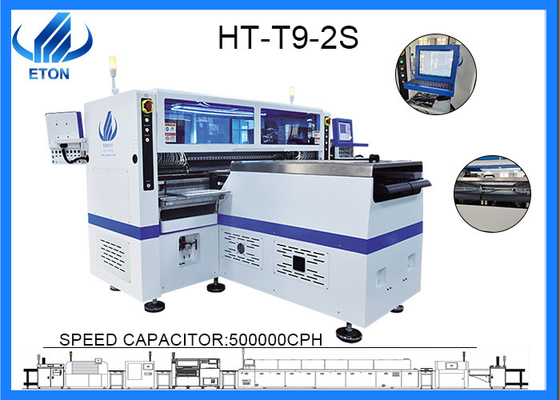

SMT chip pick and place machine for rolling strip,flexible led strip
Parameter
Dimension:3454*3035*1777mm
Total Weight:3100 kg
PCB Length Width:250*any length
PCB Thickness:0.1-0.5mm
PCB Clamping:Vacuum adsorption, cylinder splint, adjustable track width
Mounting Mode:Group picking and group placing
Mounting speed: 500000 CPH(optimum speed)
Repeat mounting Precision:±0.05mm (Repeat precision)
Mounting Height:≦5mm
Components:LED 3014/ 3020/ 2835/ 5050 and capacitors, resistors, bridge rectifiers, etc.
No. of Feeders Station:136pcs
No. of head:136pcs
Power:380AC 50 HZ
Power Consumption:9.6kw
CONCEPT
Automatic SMT machine is used to achieve high-speed, high-precision automatic placement of components of the equipment, is the entire SMT production of the most critical and complex equipment. SMT machine is the main equipment in the production line, SMT machine has been developed from the early low-speed mechanical SMT machine to high-speed optical alignment SMT machine, and to multi-functional, flexible connection modular development.
Machine Lamp:
Green: machine in Automatic Operation
Yellow: error (return to origin can not be performed, pick up errors, fault identification, etc.) or interlock generated.
Red: The Machine is in an emergency stop state (where the machine or YPU stop button is pressed) .
Support of technology
The core technology of ETON LED Mounter is independently developed by Eton engineer. Chinese and English interface, humanized design makes product operation easy to learn, ordinary workers can operate independently after a short period of training, in comparison, foreign products need at least one professional engineer, two workers, in the overall cost control of labor, easy pass products significantly reduced the cost of product use, the top of the SMT industry.
Service
Warranty :1 Year ,during one year,any parts broken we provide exchange or fixed it for free.
Teaching:owning to the software are R&D by our company engineer,we provide learning how to operate the machine until you can run it,also freely up-grated you will enjoy.
Machinery Test Report:Provided
Delivery:Within 30 Days
Supply Ability:50 Sets per Month
Packaging & Delivery :we packed machine in wooden box in order to waterproof and prevent the collision.
