| Model: | EHT-E8D-1200 | Warranty: | 1 Year,12 Months |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Power Supply: | 380V 50HZ | Condition: | 100% Original,Brand-new |
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter | Weight: | 2500KG |
| Mounting Speed: | 90000 CPH | Type: | Automatic |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Dimension: | 3150*2250*1650mm |
| High Light: | lens SMT Chip Mounter,power drivers pick and place machine,driver board SMT Chip Mounter |
||

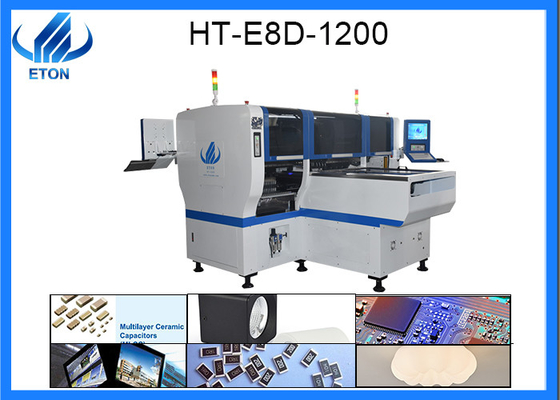

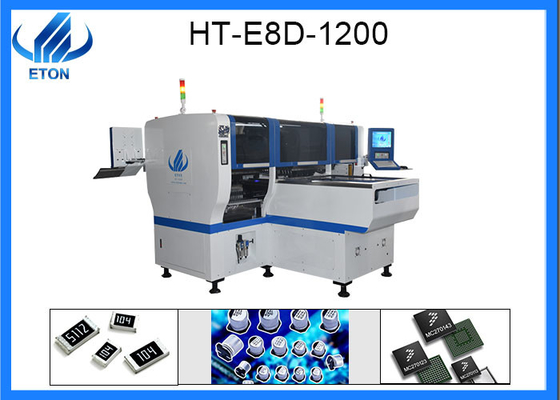

Multifunctional pick and place machine in SMT for driver board,lens,power driver.
Technical parameter
Model:E8D-1200
Dimension:3150*2250*1650mm
Total Weight:2500kg
PCB Length Width:Max:1200*300mm Min:100*100mm
PCB Thickness:0.5-5mm
PCB Clamping:Adjustable pressure pneumatic
Mounting Mode:Group picking and separate placingseparate picking and separate placing
No. of Camera:4pcs
Mounting Precision:±0.04mm
Mounting Height:<15mm (Automatic Changing)
Mounting Speed:90000 CPH
Components:LED , capacitors, resistors, IC,shaped components, etc.
Components Space:0.2mm
No. of Feeders Station:48pcs
No. of nozzles:24pcs
Power:380AC 50HZ
Power Consumption:8 KW
Conveyor transmission:Max length :1200 mm
Transmission Speed:＞1000mm/sec
Related machine
Stencil printer
Automatic printing machine constitute and features
PCB transport and clamping system
• The optimally designed module drive structure effectively improves the stability of the platform calibration,balanced contact between the PCB and the steel mesh.
• Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully
• Programmable transport speed control makes PB stop more precise.
• Unique crafted internal gear conveyor belt to prevent jamming.
• The PCB loading direction can be selected and combined freely.
Driver board
Motor driver is a device used to control and power the motor, it is a closed cube, which includes Motor Control Board and Motor Drive Board two parts, motor control board above including the main control chip, PWM output circuit, filter circuit, encryption chip and other parts, Motor Drive Board part including inverter part, power conversion part (including rectifier part, power protection part, discharge part, etc.) , current sampling section (digital sampling chip or resistance sampling, etc.) , communication section, and so on. From the hardware level, is a master control chip. Of course, some people like to call the motor drive this whole Motor controller, others like to call the Motor Control Board Motor Drive.
