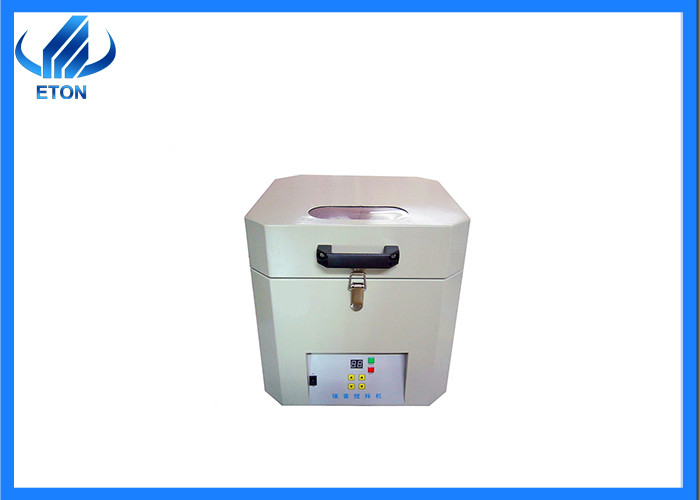

Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer

Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer
Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer

Large Image :  Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: Solder paste mixer

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: standard wooden box package
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Solder Paste Mixer Dimension: 400*400*420mm
Weight: 35kg Opearation Voltage: Ac 550v 60hz
Power: 60W Stir Two Cans Of Solder Paste At The Same Time: 500g
High Light:

60W Solder Paste Mixer Equipment

,

SMT Solder Paste Mixer Equipment

,

220v Solder Cream Mixer

No manual stirring required Mini SMT Solder Paste Mixer Equipment and Solder Cream Mixer



Brief introduce



Equipment for evenly mixing tin powder and flux paste

The solder paste mixer can effectively mix tin powder and flux paste evenly. Achieve more perfect printing and reflow results, save labor and standardize this operation, of course, without opening the can and reducing the chance of moisture absorption.



The machine features:



  • Maximum speed can reach 1000 rpm
  • When stirring, it is necessary to de-ice the solder paste beforehand;
  • Do not have to open the container;
  • Power single phase 220v:
  • No gas problem:
  • Does not destroy the shape of tin powder:
  • Fixtures are suitable for all kinds of 500g packaging solder paste cans;
  • Mixing time can be set arbitrarily;
  • Has manual speed control function



Specifications:



Item Solder paste mixer
Dimension 400x400x420mm
Weight About 35KG
Operating Voltage AC 220V 50Hz 60Hz >60W
Operating speed Motor 1350 RPM revolution: 1000RPM Rotation: 500PRM
Working capacity 500 g. Syringe, red plastic tube, etc. the fixture can be customized.
Stir two cans of solder paste at the same time 500g
Stiring time 1-99 minute digitally adjustable
Operation method Light touch button for easy operation
Fixture function Universal fixture for all kinds of brand solder paste cans
Running noise Low running noise <20dB



Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer 0

Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer 1Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer 2



Operation method:



1: Open the top cover.

2: Open the lock of the fixture.

3: Put the solder paste cans that need to be stirred into the fixture. If you want to stir two cans at the same time, you can put one can in each of the left and right fixtures. If you only need to stir one can, you need to put the weighted solder paste cans configured by the manufacturer. Put into any of the fixtures.

4: Lock the latch of the fixture.

5: Close the top cover.

6: Press the START button to start the machine.



Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer 3

Mini SMT Solder Paste Mixer Equipment Single Phase 220v Solder Cream Mixer 4



FAQ



Q1: How’s the package?

A1: Wooden Boxes



Q2:The rotation speed can be adjusted?

A2:Yes,It can be adjusted.



Q3:The machine uses 500ml containers or 300ml capacity?

A3:Our machine uses 500ml



Q4:If we just use one container, do we require counter weight for unbalanced load?

A4:While stirring one solder paste, we will give you a counterweight. You need to put the counterweight into it.
