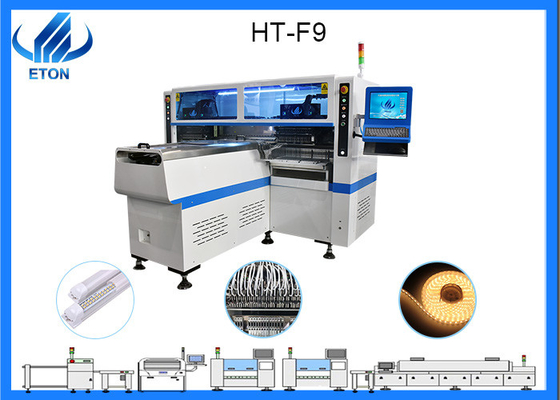

LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry

LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry
LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry

Large Image :  LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: HT-F9

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: WE USE VACUUM WOODEN BOC PACKAGE
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 50PCS/Month
Detailed Product Description
Model: HT-F9 Warranty: 1 Year,12 Months
Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line
Power Supply: 380V 50HZ Condition: 100% Original,Brand-new
Product Name: Place Machine\ LED Mounter\LED Assembly Machine,Automatic SMT Mounting Shooter Weight: 1700KG
Mounting Speed: 200000-25000CPH Type: SMT Machine Related Products,Automatic
Usage: Circuit Board Assembly,SMT Mounting Machine,SMD,LED Dimension: 2700*2300*1550mm
High Light:

LED Pick And Place Machine 6KW

,

380V SMT Mounter machine

,

LED light industry SMT Mounter machine

SMT machine in LED light industry for kinds of LED products pick and place machine

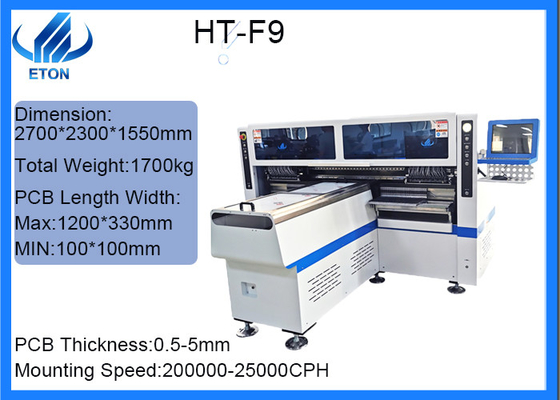

Technical parameter

Dimension:2700*2300*1550mm

Total Weight:1700kg

PCB Length Width:Max:1200*330mm Min:100*100mm

PCB Thickness:0.5-5mm

PCB Clamping:Adjustable pressure pneumatic

Mounting Mode:Group picking and group placing

Software:R&D independently

Mounting Speed:200000-25000CPH

Repeat mounting Precision:±0.02mm (Repeat precision)

Mounting Height:≦5mm

Components:LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.

No.of camera:5pcs

Power consumption:6KW

No.of head:68pcs

No.of feeder:68pcs

LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry 0



Quality control

The “Speed” and “Stability” of the products have created the ETON brand, ETON’S original manufacturing plan, the pursuit of rigorous quality management and sound The Adjuster, and innovation, continuously create value for customers. The core technology of ETON LED Mounter is independently developed by ETON people. Chinese and English interface, humanized design makes product operation easy to learn, ordinary workers can operate independently after a short period of training, in comparison, foreign products need at least one professional engineer, two workers, in the overall cost control of labor, easy pass products significantly reduced the cost of product use, the top of the SMT industry.



Our market

LED Products Pick And Place Machine SMT Mounter Machine For LED Light Industry 1

In order to let you understand our company's client market more intuitively, a client picture for everyone.

•NVC Group is the first company in my country's lighting industry whose performance has exceeded tens of billions for two consecutive years.TCL and Mulinsen, both of China's top 500 companies, are also the top brands in the Chinese LED market.Neediness to say, KONKA, OPPLE, this is a well-known brand in China.PFSL (Foshan Lighting), SHILIN (Shilin Lighting), HELI (Heli Lighting), NAVIGATE (Navigate Lighting), etc..

So many famous companies are using our company's pick and place machine.Our company not only has so many large clients in China, our products are also exported to more than 20 countries,including South Korea, India, Vietnam, Turkey, Egypt, Tunisia, Iran, Germany, etc.Foreign clients include RK, SURYA, Fiem, Calcom, POLYCRB in India; RangDong in Vietnam, UNISTAR in Egypt, KENDAL in Turkey, etc.These are all our company's customers. Many customers use our machines, and we have also received praise from many customers.Many big clients cooperating with our company
